Stage 412
-Quad-Channel Handheld VHF Wireless System, Frequency Selectable
VHF Operation
Samson has been at the forefront of wireless innovation, always striving to make it easier for performers everywhere to cut the cord. The Stage 412 operates on the reliable VHF frequency spectrum, which has become much less crowded with the advent of digital television.
Simple Setup
The Stage 412's frequency-agile design offers four channels with six operating frequencies per channel over a 173MHz-198MHz frequency range. In addition, the system's IR sync feature allows users to wirelessly match each transmitter to the operating frequency of a receiver channel in seconds. A 200' operating range provides ample freedom for any presenter or performing group, while each microphone transmitter offers exceptional battery life of up to 10 hours on two AA batteries (not included).
Versatile Performance

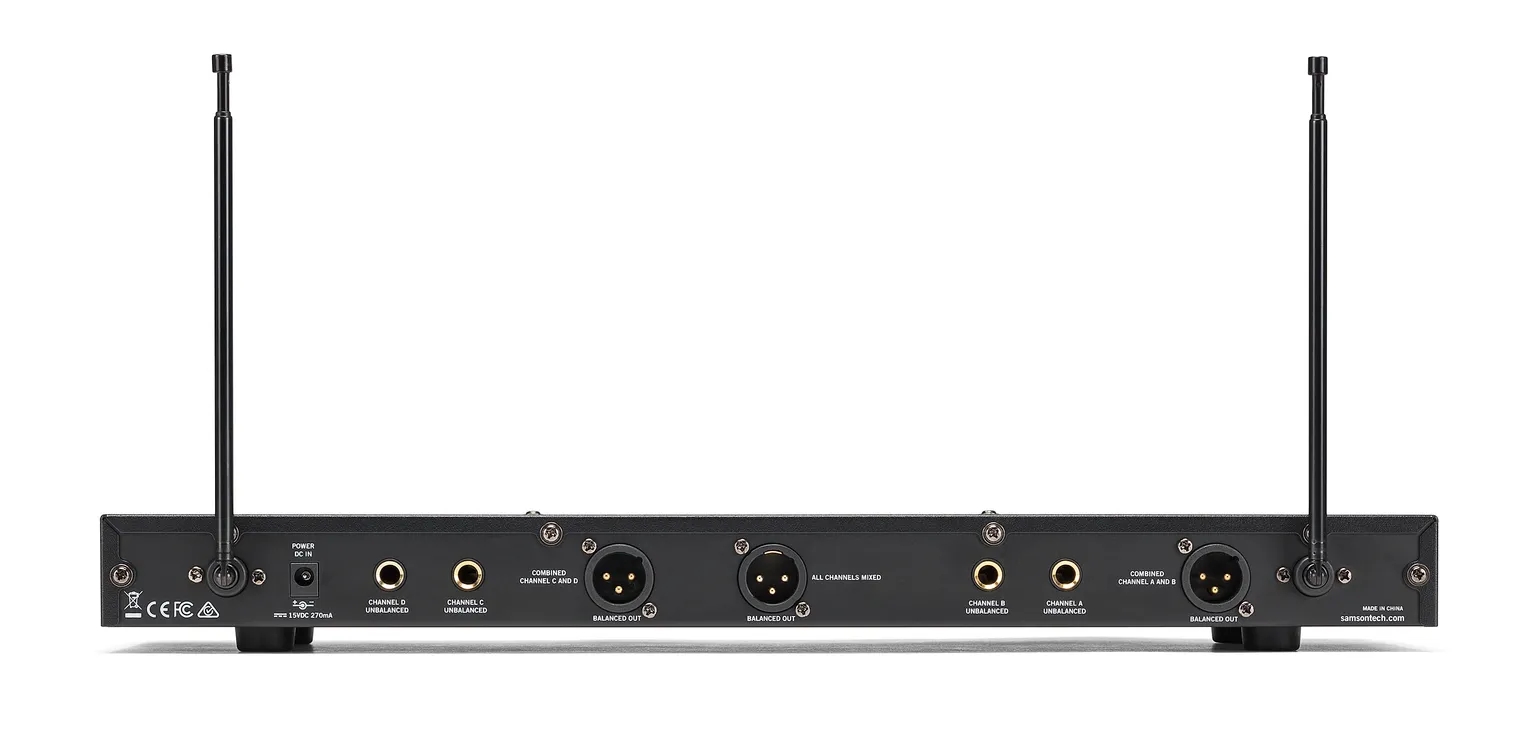

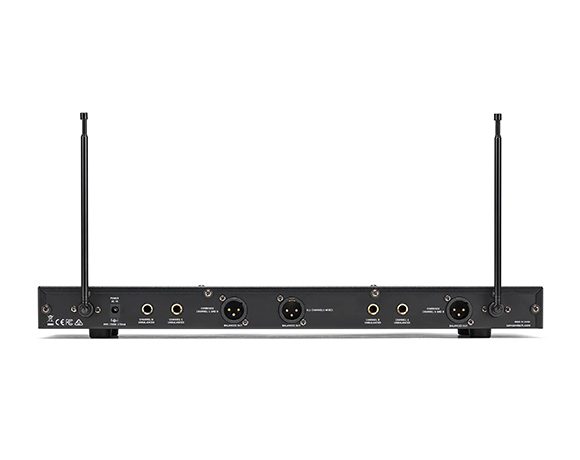

Featuring the rugged metal SR412 receiver, the Stage 412 is designed for maximum durability and versatility. The rear panel features four 1/4" outputs and three balanced XLR outputs for connection to a mixer or powered PA speakers. The 1/4" outputs send each channel separately, while the XLR outputs are dedicated to sending single output mixes of channels A/B, channels C/D, and all four channels. Front panel volume controls on each channel allow you to find the perfect blend for each performer.

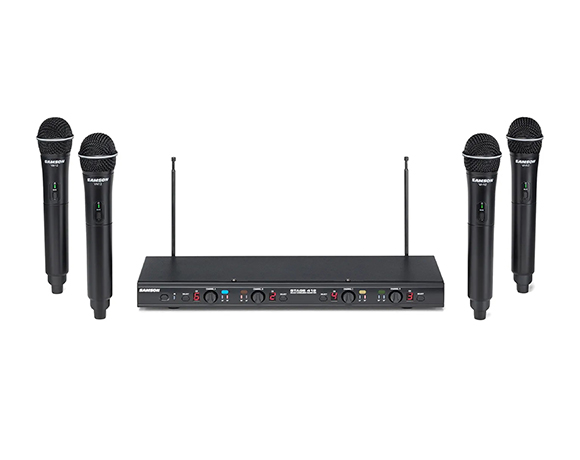

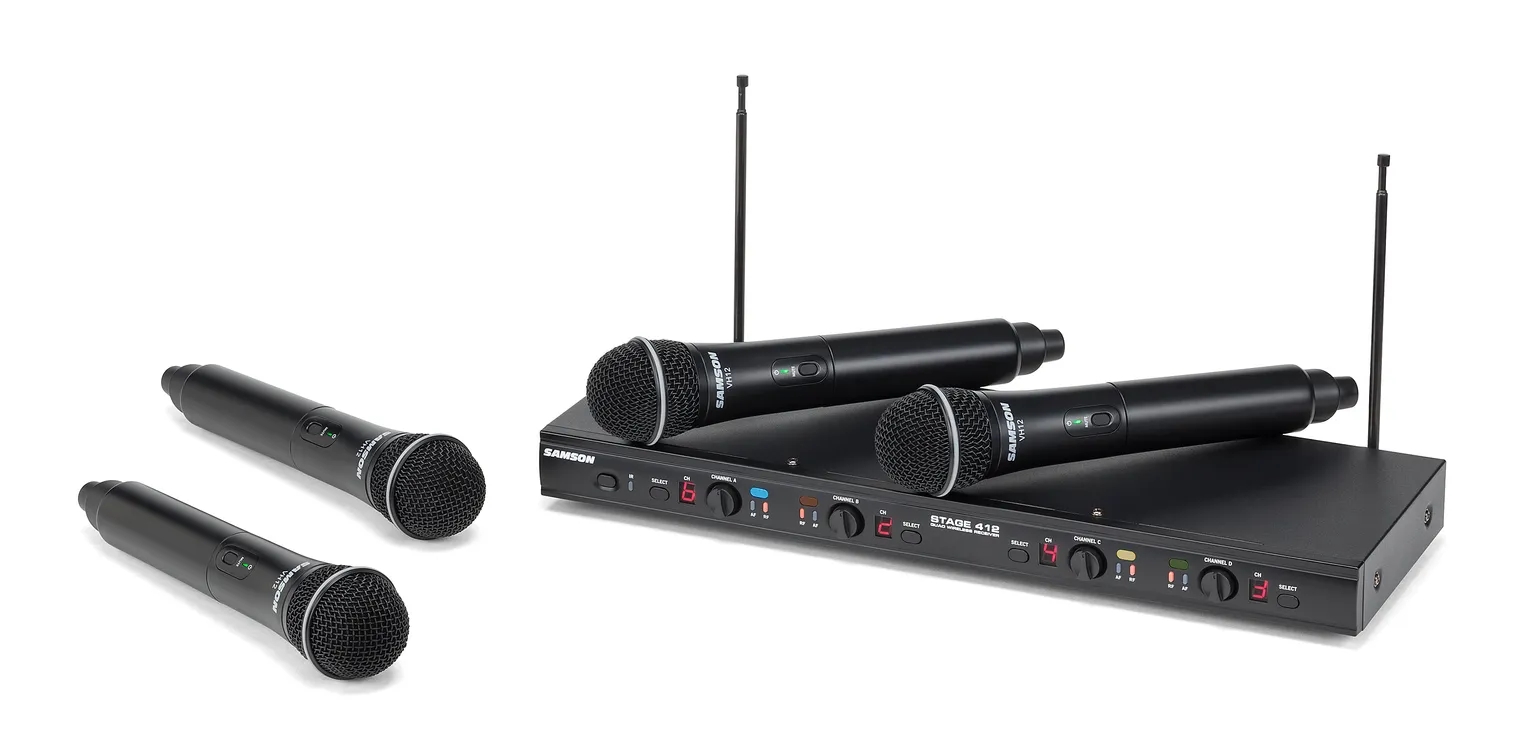

Stage 412 Wireless System
Quad-channel VHF (173MHz¨C198MHz) wireless system
Six operating frequencies per channel
Up to three simultaneous systems (region dependent)
IR sync wirelessly matches receiver and transmitter frequency
200' (60m) operating range (line-of-sight)
AC adapter included

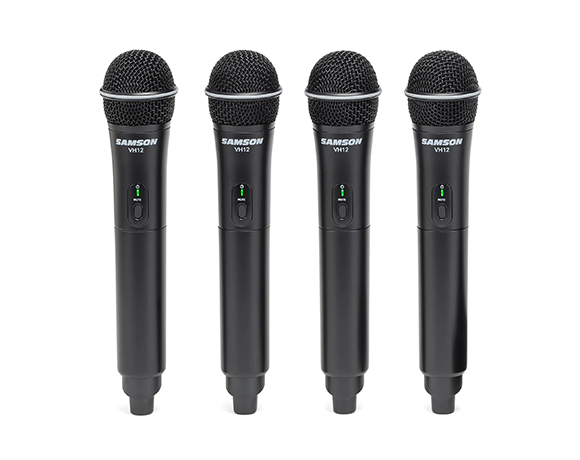

VH12 Handheld Transmitters
Two Q6 Dynamic Microphone capsules
Each offers up to 10 hours of battery life using two AA batteries (not included)

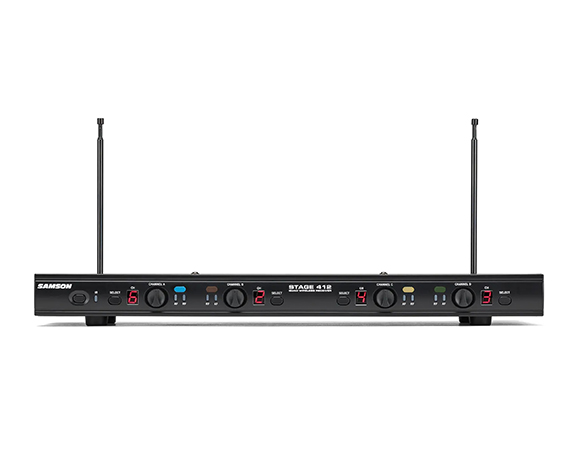

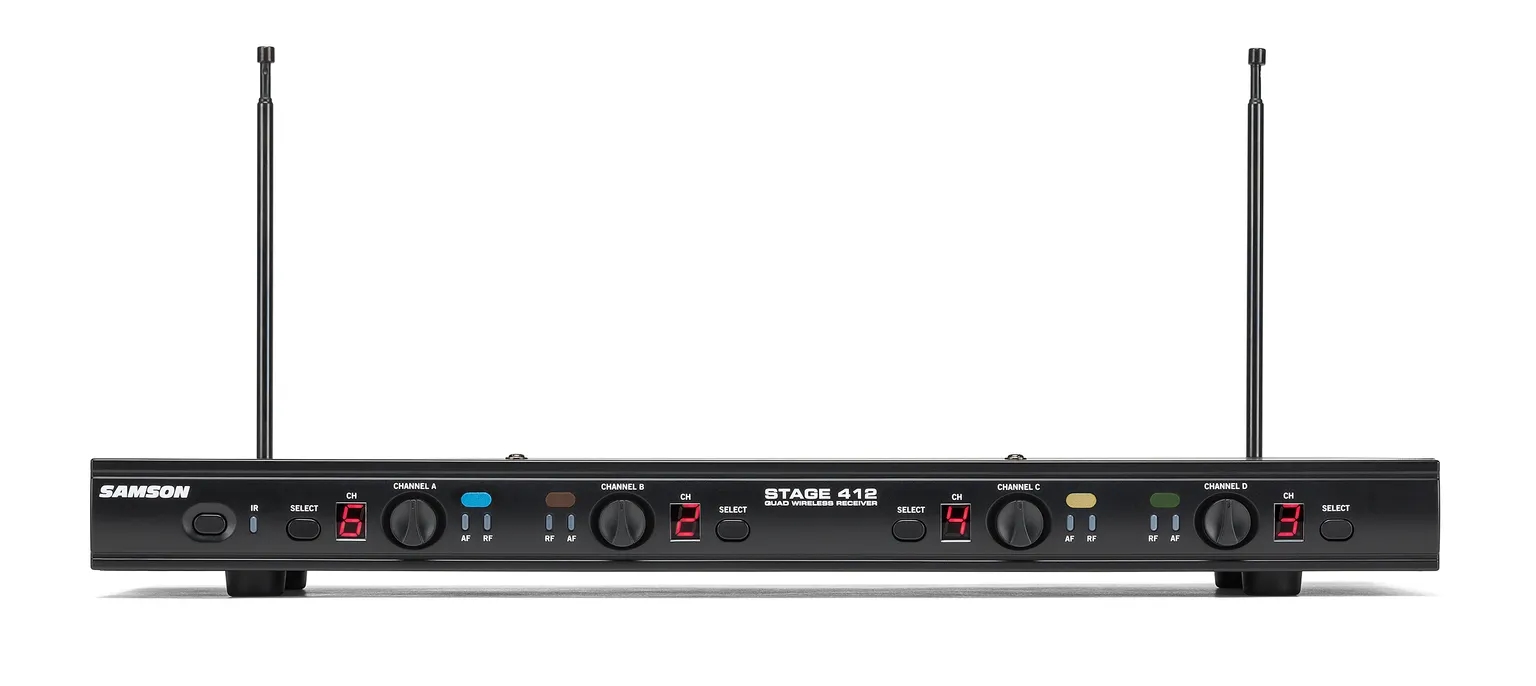

SR412 Wireless Receiver
Rugged metal chassis
Dedicated Volume controls for each channel
Four 1/4" independent channel outputs
Three balanced XLR mixed outputs
System
Operating FrequencyVHF 173MHz to 198MHz
Number of Frequencies per Channel6
Frequency Stability¡À0.005%
Modulation ModeFM
Maximum Deviation¡À30 kHz
Operating Range200¡¯ / 60m
Frequency Response80 Hz to 15kHz
Tone Key Frequency30.00kHz
VH212 Transmitter
RF Power Output10mW
Microphone ElementDynamic
Typical Battery Life10 hours
Current Consumption120 mA typical
Dimensionsø2.17" x 10" / ø55mm x 255mm
Net Weight0.5lb 0.22kg
SR412 Receiver
Image Rejection35 dB
Dynamic Range100 dB
Maximum Output1.37 V
Sensitivity-100 dBm @ 30 dB SINAD
Output Connectors2x 1/4¡± (6.3 mm) unbalanced, 3x XLR balanced
Audio Output Levels-12dB
Dimensions16.92¡± x 6.7¡± x 1.57¡± / 430mm x 170mm x 40mm
Net Weight3.08lb / 1.4 kg
Recommended Use
The Stage 412 is a frequency-agile, four-channel wireless microphone system with four dynamic handheld microphones that transmit to a single rugged metal receiver. Each handheld features Samson's Q6 dynamic microphone element, providing crisp, clear sound and reliable VHF wireless performance for presentations, education, worship, karaoke and other applications with up to four performers.
