Stage 212

VHF Operation

Samson has been at the forefront of wireless innovation, always striving to make it easier for performers everywhere to cut the cord. The Stage 212 operates on the reliable VHF frequency spectrum, which has become much less crowded with the advent of digital television.

Simple Setup

The Stage 212's frequency-agile design offers 12 operating channels over a 173MHz-198MHz frequency range. In addition, the system's IR sync feature allows users to wirelessly match each transmitter to a receiver's operating frequency. A 200' operating range provides ample freedom for any presenter or performing duo, while each mic transmitter offers exceptional battery life of up to 10 hours on two AA batteries (not included).

Versatile Performance

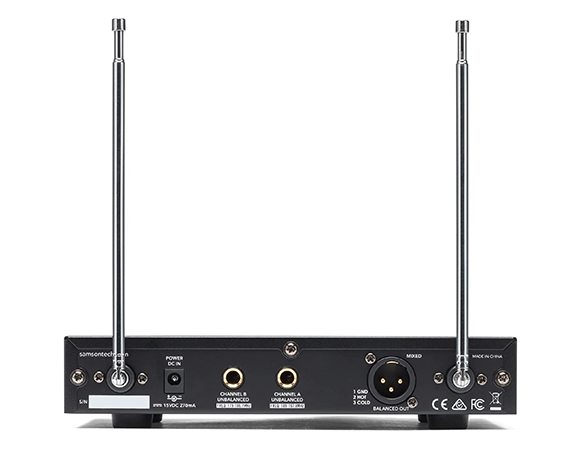

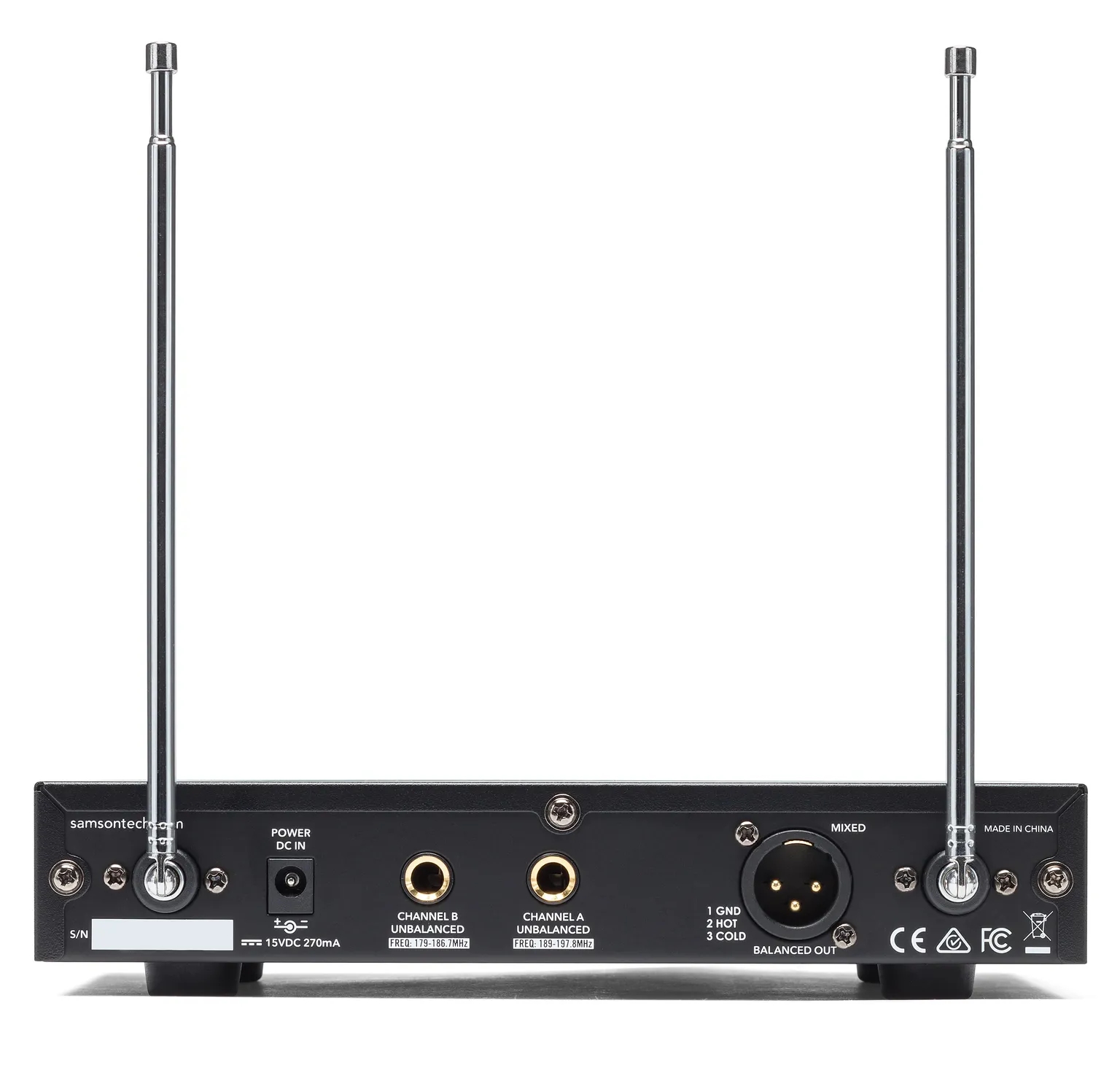

Featuring the rugged metal SR212 receiver, the Stage 212 is designed for maximum durability and versatility. The rear panel features two 1/4" outputs and a balanced XLR output for connection to a mixer or powered PA speaker. The 1/4" outputs send each channel separately, while the XLR sends a mix of both. Front panel volume controls on each channel let you find the perfect blend for each performer.

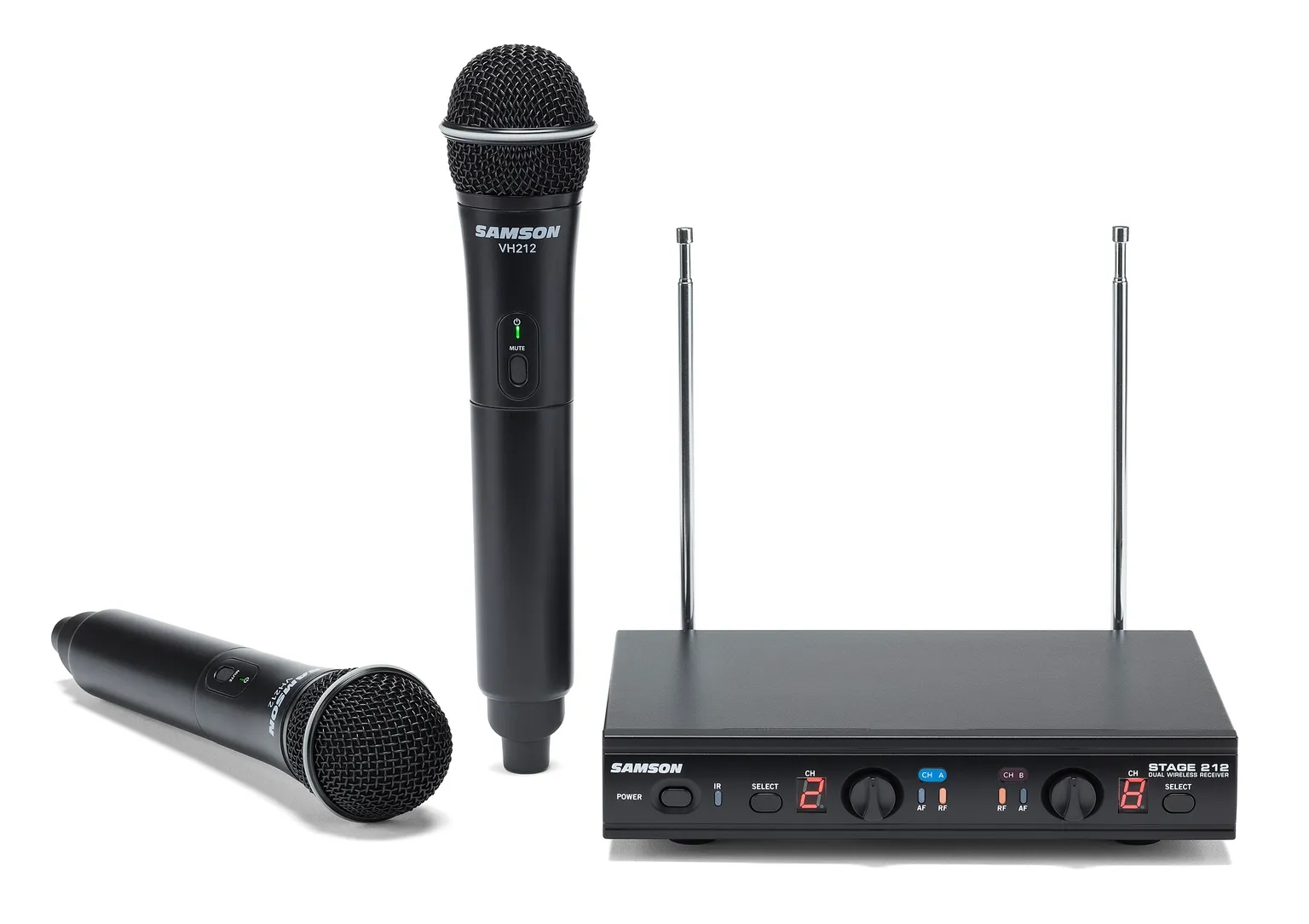

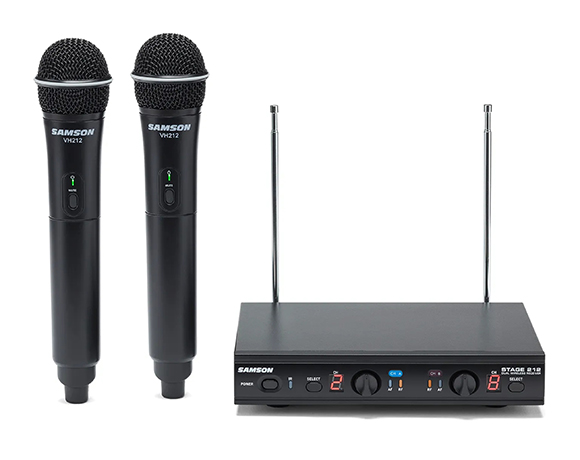

Stage 212 Wireless System

• Dual-channel VHF wireless system

• 12 operating channels across 173MHz–198MHz frequency range

• Up to three simultaneous systems per frequency band (region dependent)

• IR sync wirelessly matches receiver and transmitter frequency

• 200' (60m) operating range (line-of-sight)

• AC adapter included

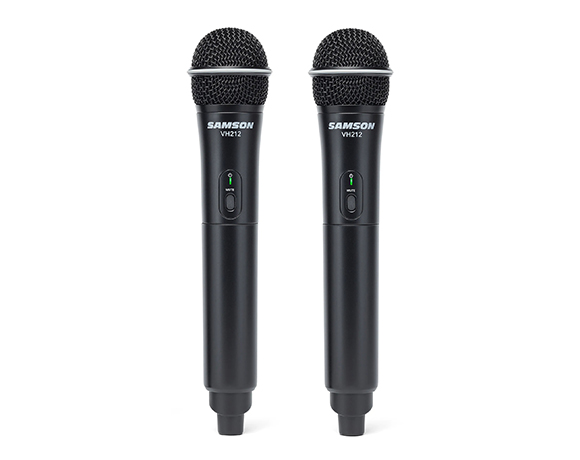

VH12 Handheld Transmitters

• Two Q6 Dynamic Microphone capsules

• Each offers up to 10 hours of battery life using two AA batteries (not included)

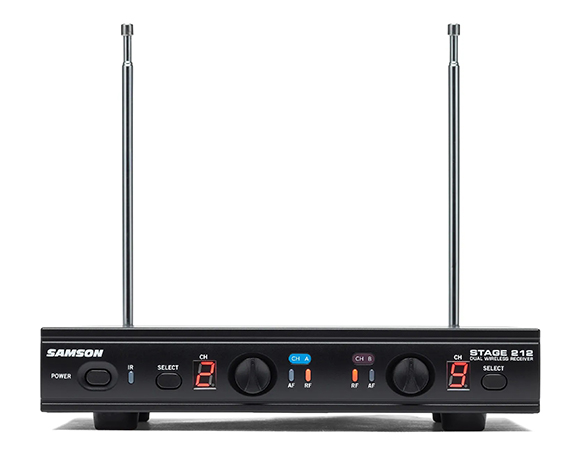

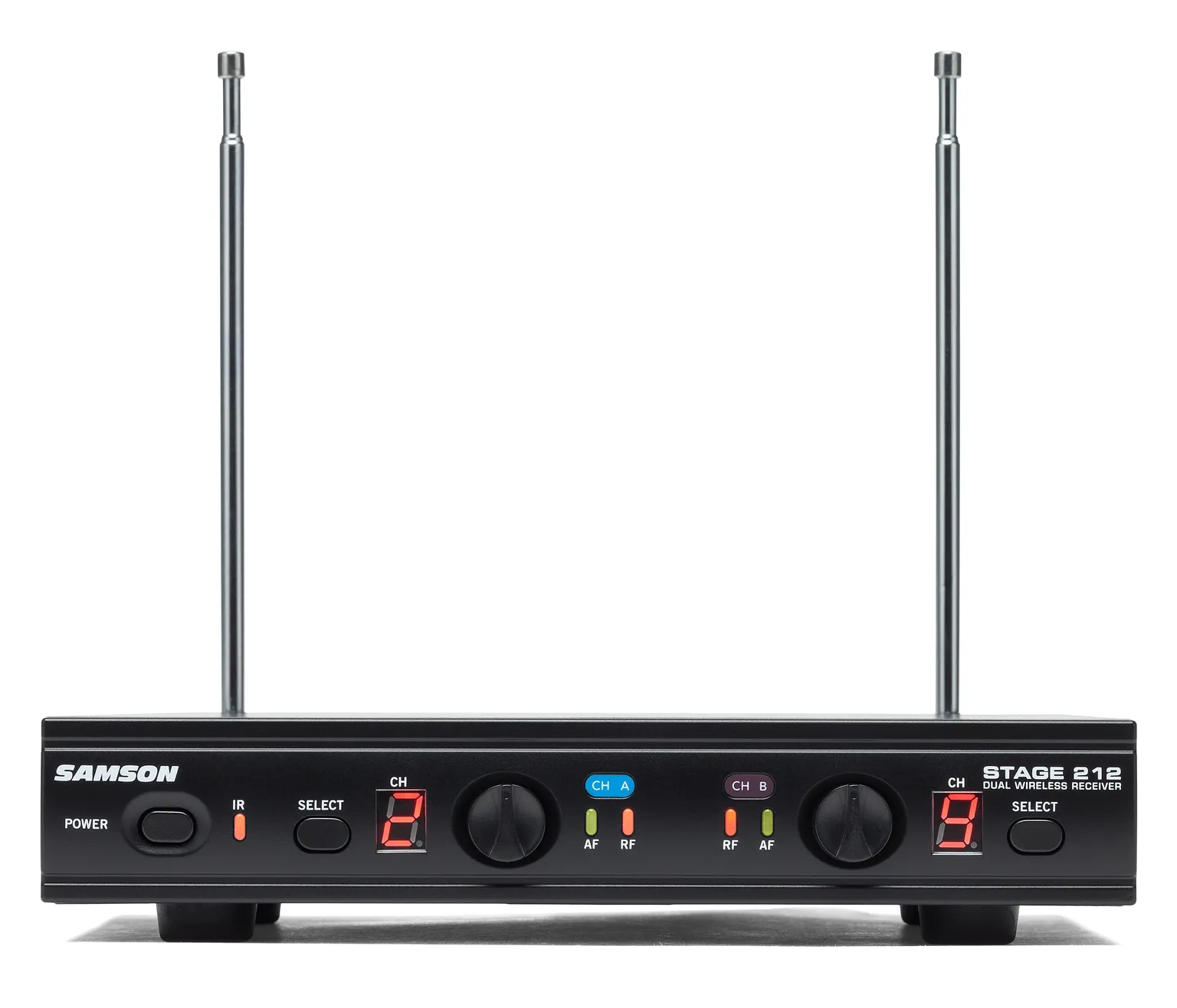

SR212 Wireless Receiver

• Rugged metal chassis

• Dedicated Volume controls for each channel

• 1/4" outputs for sending each channel to mixer

• Balanced XLR Mix output combines both receiver signals to a single output channel

System

Operating FrequencyVHF 173MHz to 198MHz

Number of Channels12 channels

Frequency Stability±0.005%

Modulation ModeFM

Maximum Deviation±30 kHz

Frequency Response80 Hz to 15kHz

Tone Key Frequency30.00kHz

VH212 Transmitter

RF Power Output10mW

Microphone ElementDynamic

Typical Battery Life10 hours

Current Consumption120 mA typical

Dimensionsø2.17" x 10" / ø55mm x 255mm

Net Weight0.5lb 0.22kg

SR212 Receiver

Image Rejection35 dB

Dynamic Range100 dB

Maximum Output1.37V

Sensitivity-100dBm@30dB SINAD

Output ConnectorsTwo 6.3mm unbalanced, One XLR balanced

Audio Output Levels-12dB

Power Supply100-240V, 50/60Hz, 0.4A, Output: DC 15V, 800mA

Dimensions8.27" x 5.7" x 1.4" / 210mm x 145mm x 36mm

Net Weight1.32lb / 0.6kg
