Stage 200
-Dual-Channel Handheld VHF Wireless System
VHF Operation
The Stage 200 operates on the reliable VHF frequency spectrum, which has become much less crowded with the advent of digital television. VHF operation also gives both microphone transmitters an exceptional battery life of up to 12 hours on two AA batteries (not included).
Simple Setup
Samson has been at the forefront of wireless innovation, always striving to make it easier for performers everywhere to cut the chord. The Stage 200's fixed frequency operation allows for instant setup. Simply plug in the receiver and turn on your transmitters to experience quality wireless performance. A 200' operating range provides ample freedom for any presenter or performer duo.
Versatile Performance

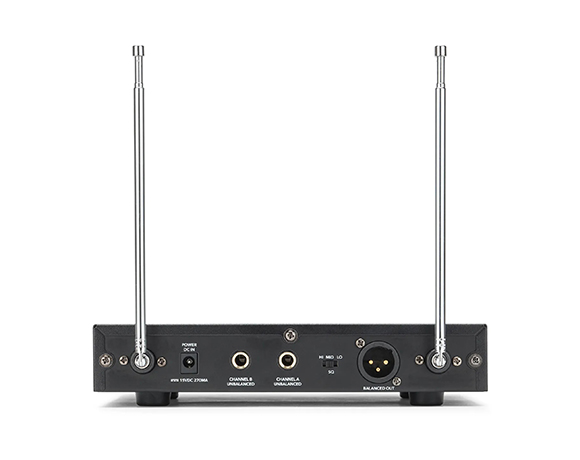

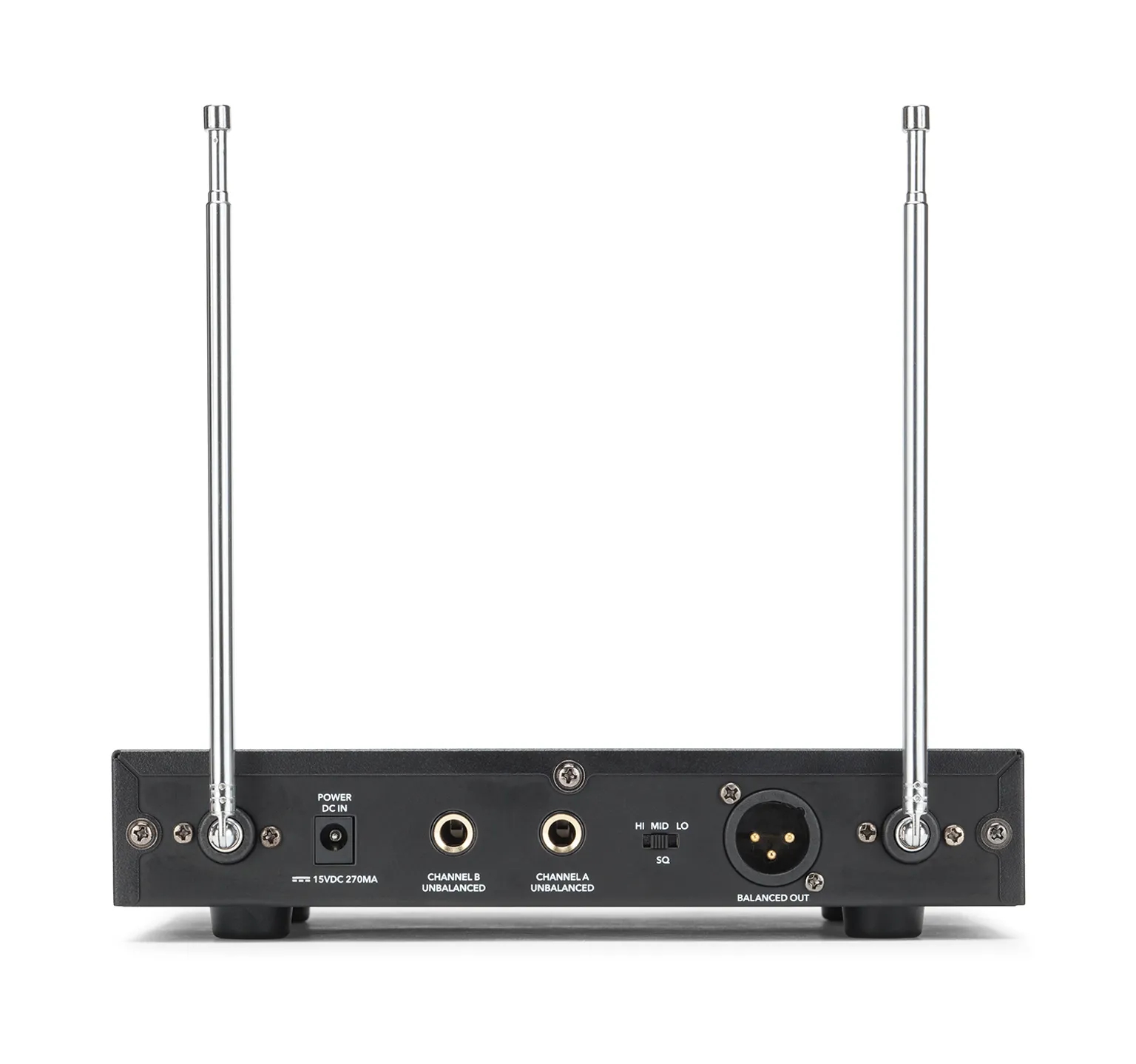

Featuring the rugged metal SR200 receiver, the Stage 200 is designed for maximum durability and versatility. The rear panel features two 1/4" outputs and a balanced XLR output for connection to a dedicated mixer or powered PA speaker. The 1/4" outputs send each channel separately, while the XLR sends a mix of both. Front panel volume controls on each channel let you find the perfect blend between two performers.

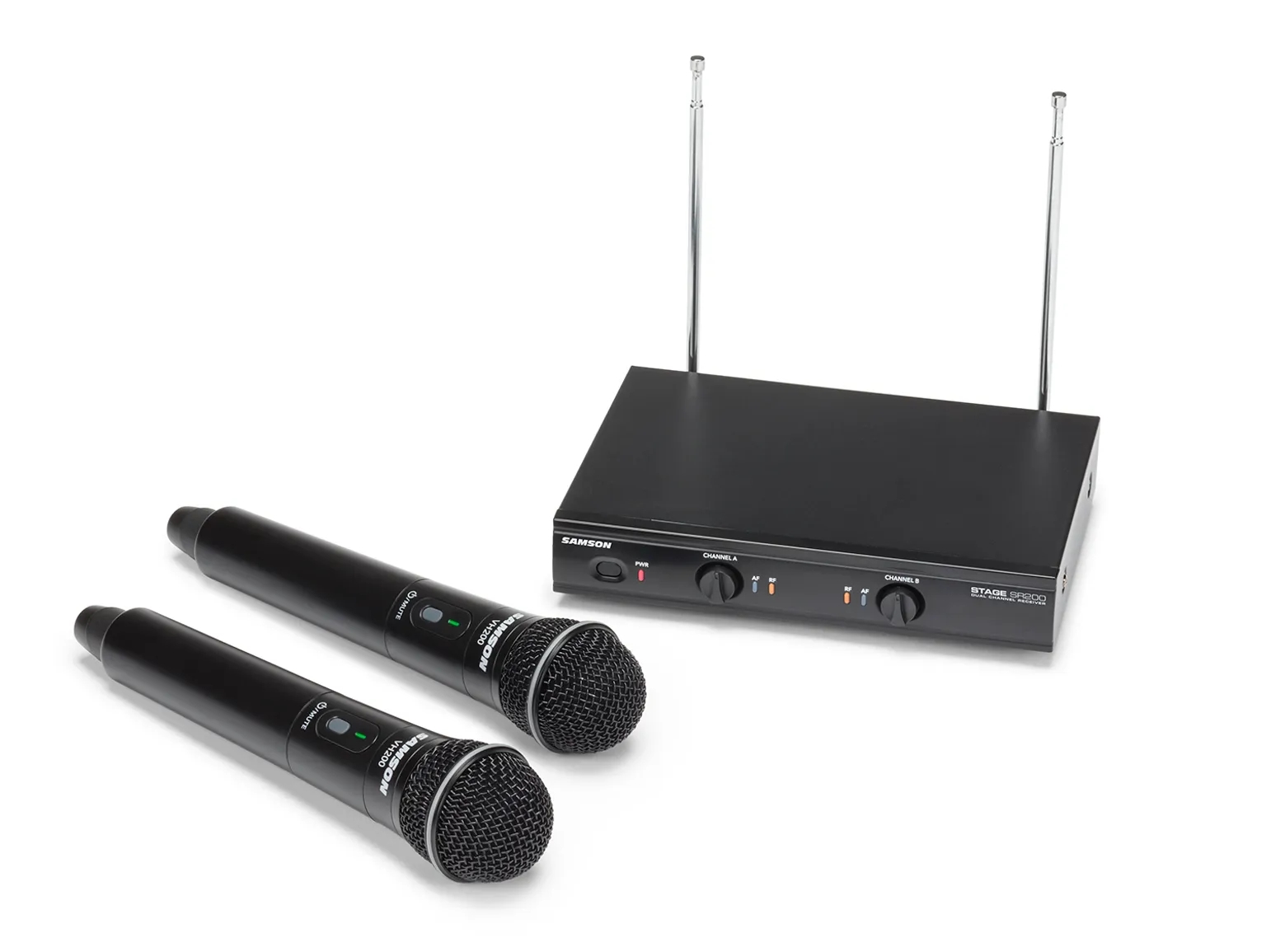

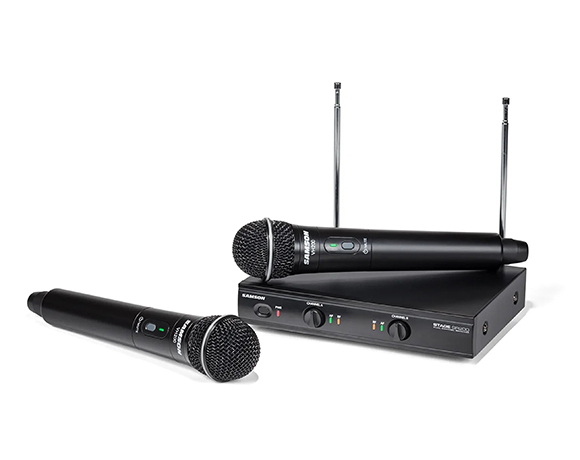

Stage 200 Wireless System
Dual-channel VHF wireless system
Fixed frequency design for instant setup
Four frequency bands available to support up to eight performers simultaneously (region dependent)
AC adapter included

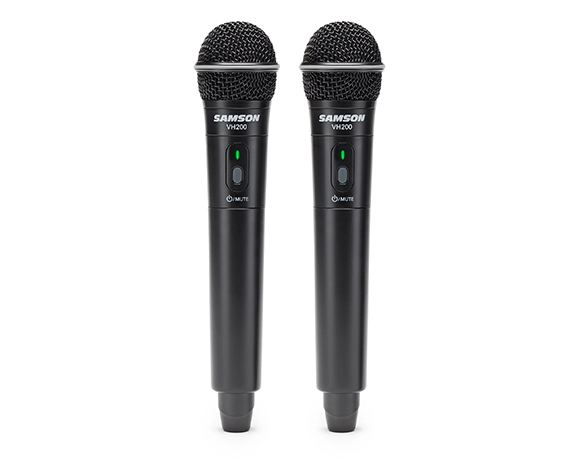

VH200 Handheld Transmitters
Two Q6 Dynamic Microphone capsules
Each offers up to 12 hours of battery life using two AA batteries (not included)
200' operating range (line-of-sight)

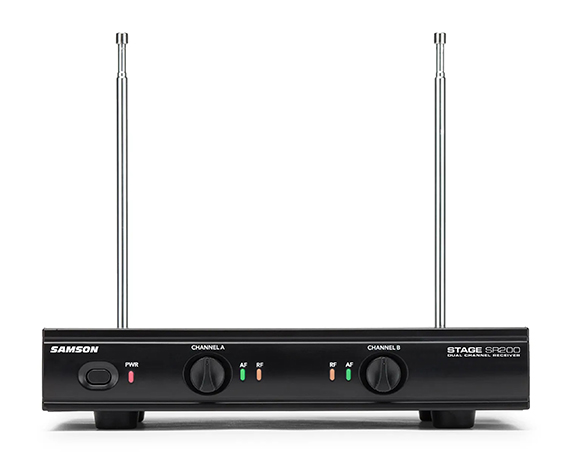

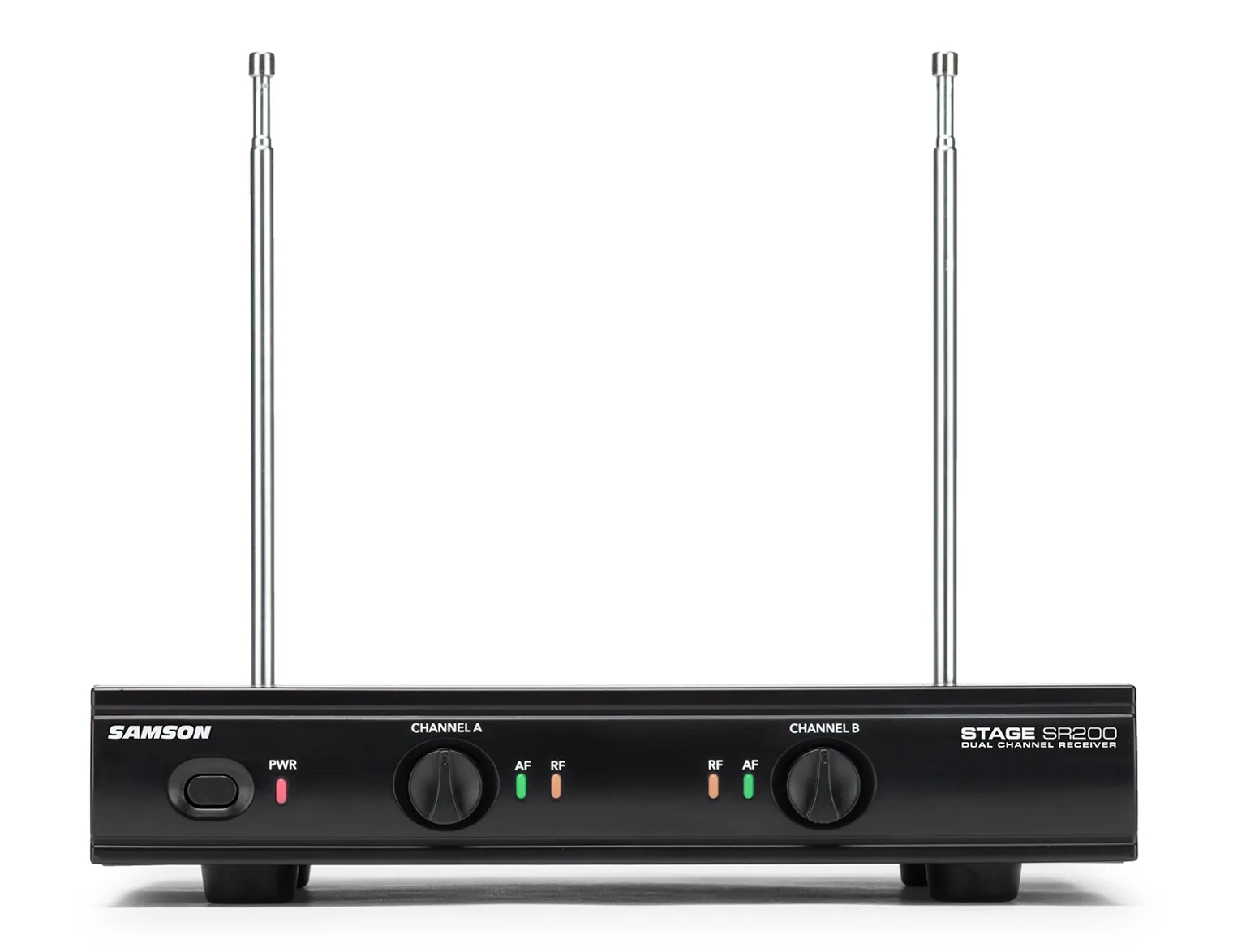

SR200 Wireless Receiver
Rugged metal chassis
Dedicated Volume controls for each channel
1/4" outputs for sending each channel to mixer
Balanced XLR Mix output for direct connection to PA
System
Operating FrequencyVHF 182.1MHz to 212.725MHz
Number of ChannelsFixed channel
Frequency Stability¡À0.005%
Modulation ModeFM
Maximum Deviation¡À30 kHz
Operating Range50 meter
Frequency Response80 Hz to 15kHz
VH200 Transmitter
RF Power Output25mW
Microphone ElementDynamic
Typical Battery Life12 hours
Current Consumption100 mA typical
Dimensionsø2.2¡± x 10¡± / ø55mm x 255mm
Net Weight0.49lb / 0.22kg
SR200 Receiver
Image Rejection35 dB
Dynamic Range100 dB
Maximum Output1.37V
Sensitivity-100dBm@30dB SINAD
Output ConnectorsTwo 6.3mm unbalanced, One XLR balanced
Audio Output Levels-12dB
Power Supply100-240V ~50/60Hz, 0.4A;Output: DC 15V,800mA
Dimensions8.25¡± x 5.7¡± x 1.4¡± / 210mm x 145mm x 36mm
Net Weight1.32lb / 0.6kg
Recommended Use
Stage 200 is a two-channel wireless microphone system that features two dynamic handheld microphones that transmit to a single rugged metal receiver. Each handheld features Samson's Q6 microphone element, providing crisp, clear sound and reliable VHF wireless performance for home karaoke, live presentations, education, houses of worship and other two-person applications.
