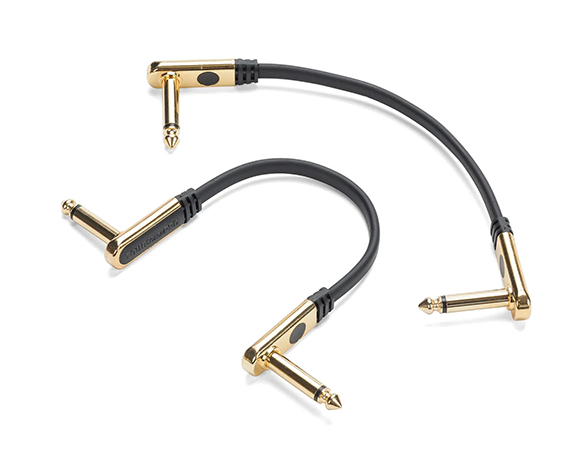

Tourtek Pro TPF Flat Patch Cables

Tourtek Pro TPFAP Flat Patch Cables are designed to meet the demands of sound engineers and touring musicians. These rugged cables feature 90° 24k gold-plated connectors on both ends and a 4mm outer diameter, perfect for connecting effects pedals and saving valuable space on pedalboards. Constructed with 99.99% OFC (Oxygen Free Copper), Tourtek Pro TPFAP low-capacitance cables provide consistent performance while delivering an uncolored sound. Each cable features a 95% braided shield and carbon-impregnated conductive PVC insulation for ultra-low noise and excellent RF/EMI rejection.

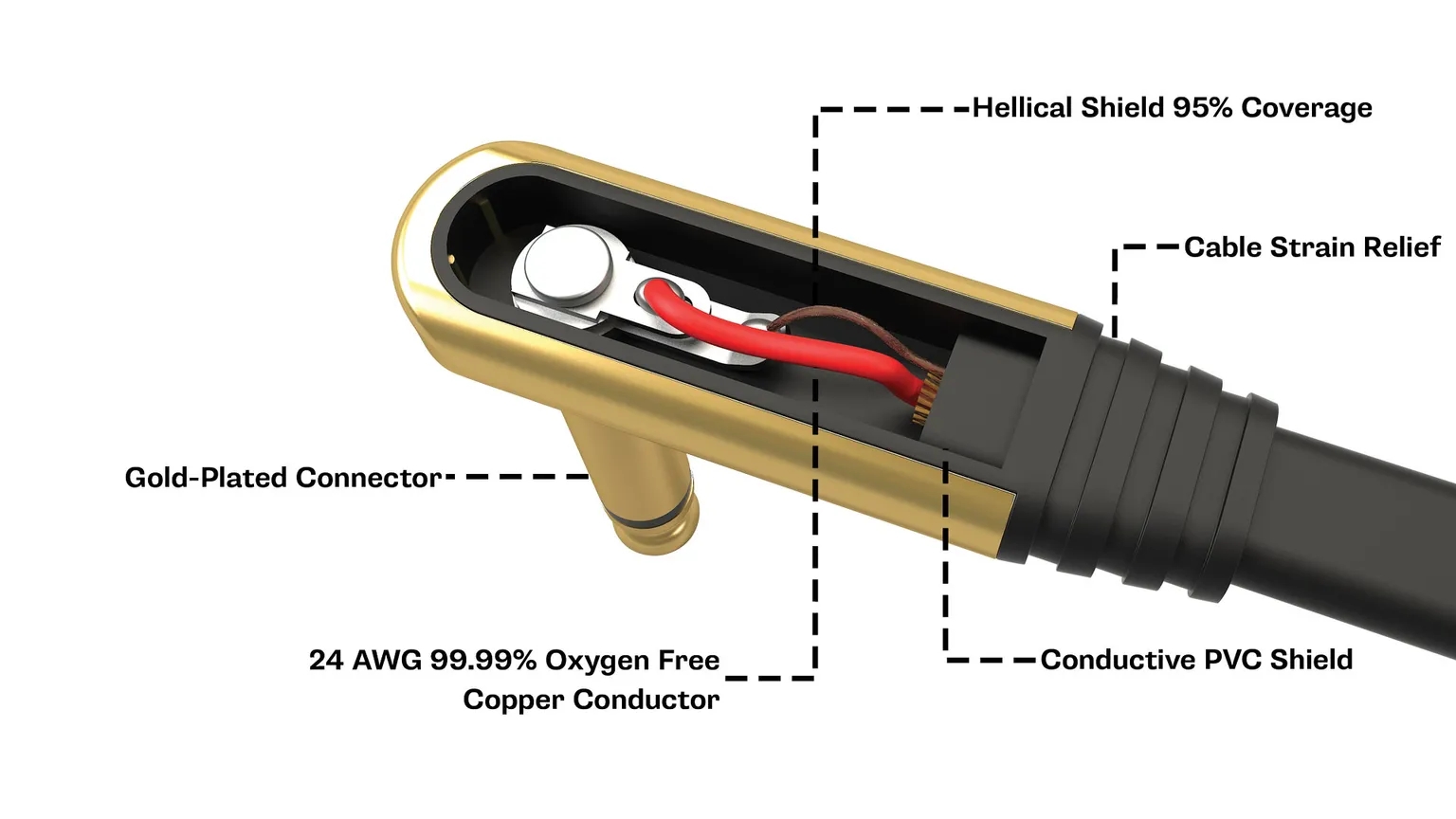

Take a look inside

Tourtek Pro Cables use 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity. OFC wire is manufactured to remove all but a minute amount of oxygen and other impurities making it more resistant to corrosion. This means you'll experience the same high performance from your Tourtek Pro Cables for a long time.

Features

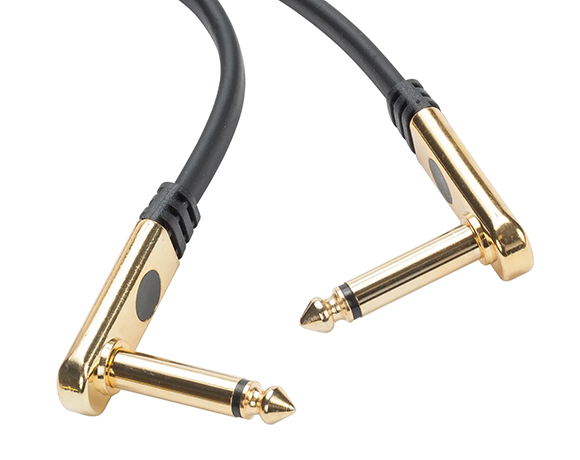

• Right-angle 24k gold-plated connectors on both ends for secure connections

• 4mm outer diameter saves valuable space on pedalboards

• Constructed with 99.99% OFC for consistent and uncolored sound

• 95% braided shield and carbon-impregnated conductive PVC insulation for ultra-low noise

• Ideal for sound engineers and touring musicians who demand rugged and reliable cables

• Available in 6" and 1" lengths.

Conductor AWG Size & Stranding24 AWG / 0.12x20

Capacitance Conductor to Shield34.5pF/ft @1kHz

Conductor Material99.99% Oxygen Free Copper

Insulation MaterialPolyethylene

Insulation Diameter2.8mm ±0.05mm

Braided Shield MaterialBare Annealed Copper

Braided Shield Coverage95%

Jacket MaterialPVC, Matte Finish

Jacket Diameter6.5mm/4mm ±0.1mm
