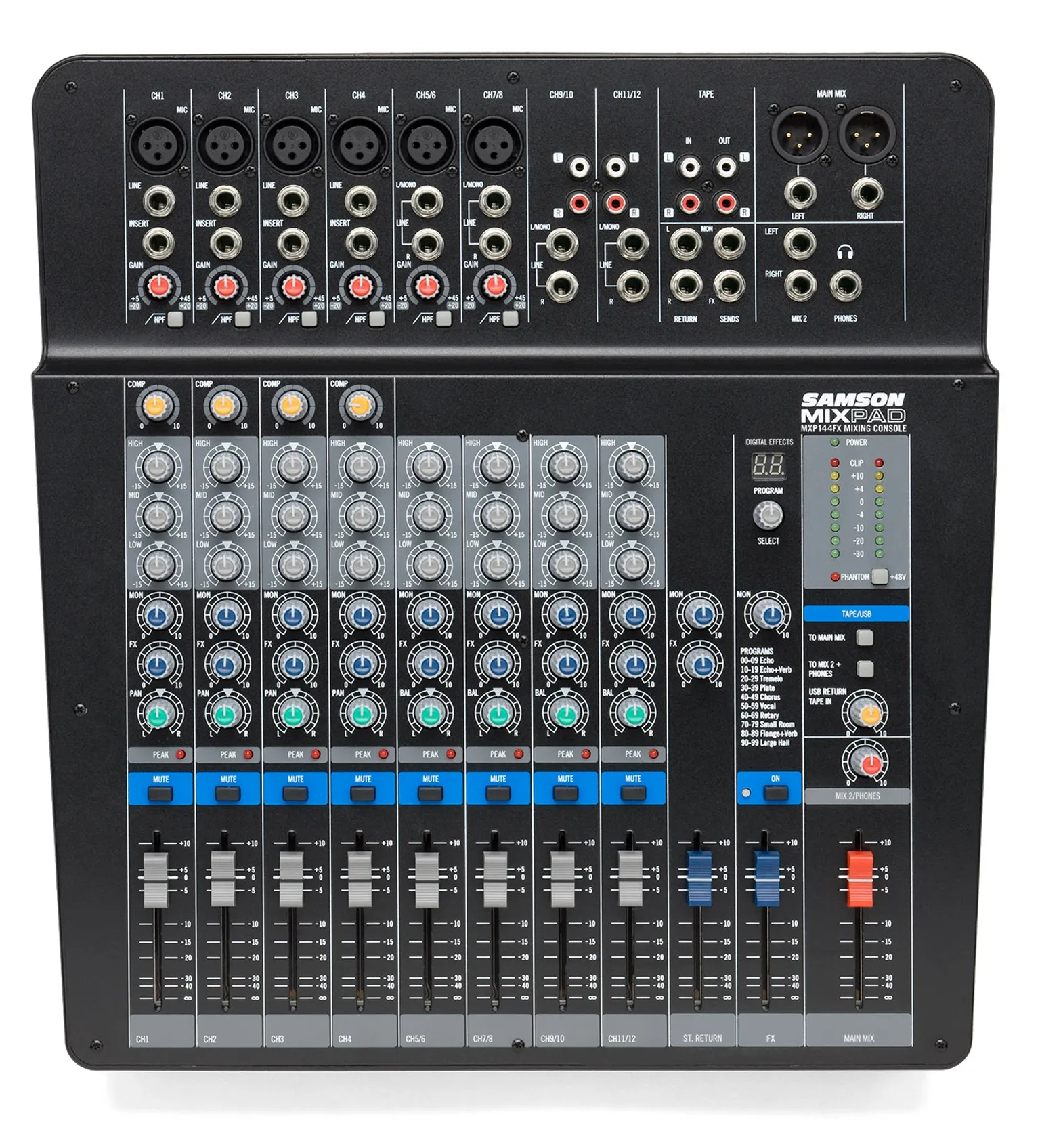

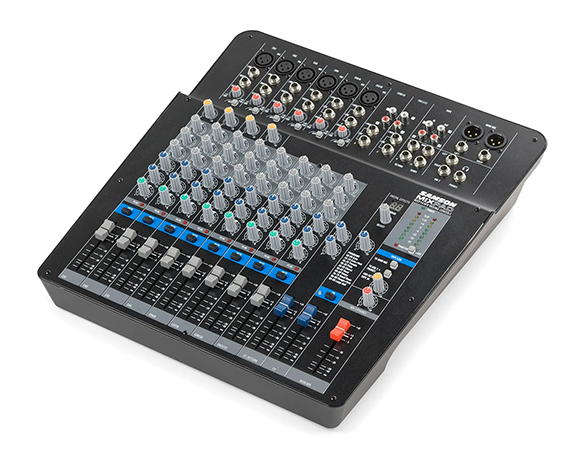

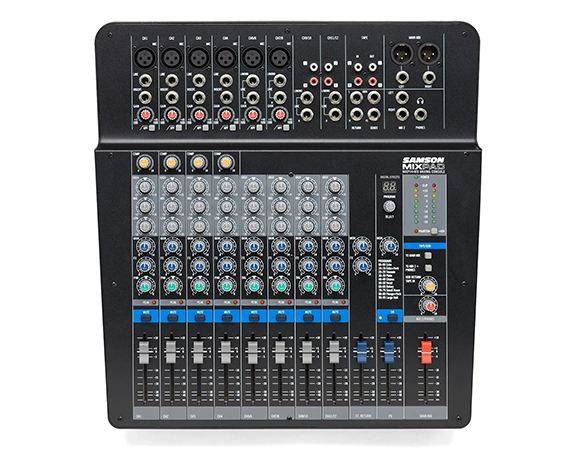

MixPad MXP144FX

Premium Value For Live Mixing

The MXP144FX features premium circuitry specifically designed to work with Samson's MDR (Maximum Dynamic Range) mic preamps to provide a wide frequency range, definitive channel separation and natural response. This ensures that all your mixes originate from pure, authentic audio signals, making the MXP144FX perfect for education, broadcast, band rehearsals, and other live sound applications.

Upgrade Your Mixes

With 100 low-noise, 24-bit digital effects, the MXP144FX offers a studio-inspired effects processor to add a professional touch to your mixes. The mixer also features a high-integrity, bi-directional USB connection for recording a mix into your favorite DAW or incorporating digital music files from your computer into a project.

Compact Powerhouse

The MXP144FX features six MDR mic preamps, with four channels equipped with single-knob compressors for studio-quality dynamic control without the need for constant tweaking of external gear. All channels on the MXP144FX are controlled by precision 60mm faders and feature 3-band EQ, gain trim, high-pass filter, and mute switch. In addition, each channel of the MXP144FX has a pre-fader aux send for your monitor mix and a post-fader aux send for routing external effects. Exceptional output flexibility makes the MXP144FX a worthy companion no matter the size of your venue, giving you precise fader control over your main mix (XLR and 1/4" outputs), as well as a Mix 2 output, headphone (phones) monitoring with level control, and an RCA tape output for recording your performance.

Bringing Your Sound to Life

The MXP144FX features selectable 48V phantom power, so you can mix in the warm, natural response of your favorite condenser mics. For live performance, the MXP144FX features brightly colored knobs and an 8-segment LED level meter for safe and efficient operation in dark environments.

Portable, easy to use, and packed with features that ensure optimal control over your performance, the Samson MixPad® MXP144FX represents a new era of possibilities for affordable live mixers.

• Ultra-low noise, high headroom analog mixer

• Six Class A, MDR (Maximum Dynamic Range) mic preamps

• Four stereo channels with multiple input options (1/4” and RCA)

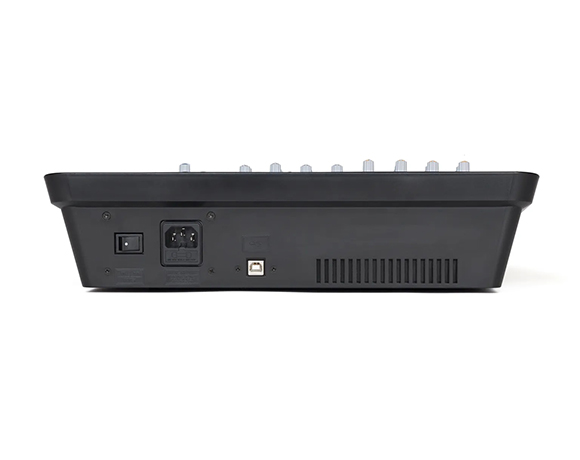

• High-integrity, bidirectional USB interface

• 100 24-bit, low-noise digital effects

• Four TRS inserts for external signal processing

• 3-band active EQ

• High-quality, precision 60mm faders

• Four single-knob, studio-quality compressors

• Pre-fader Aux Send for monitor mix

• Post-fader Aux Send for external effects

• All mic channels equipped with input Gain and high pass filters

• 48V Phantom Power for condenser microphones

• Multiple outputs: Main Mix, Mix 2, Phones and Tape

• XLR and 1/4" Main Mix outputs

• USB/Tape inputs assignable to Main Mix or Mix 2/Phones outputs

Frequency Response (Trim @ Min, unity gain ± 3 dB)

Mic to Main20Hz~30KHz

Line to Main20Hz~30KHz

Aux Return to Main20Hz~30KHz

Line to Aux Send20Hz~30KHz

T.H.D. (Trim @ Min, +4dBu output, unity gain, 1 kHz w/30 kHz LPF)

Mic/Line to Main (Mono Ch) <0.03%

Line to Main (Stereo Ch) <0.03%

Line to Aux Send <0.03%

Equivalent Input Noise (“A” filter on, input shorted)

Mic (Trim @ Min﹐ Fader set ”0”)< -90dB 20HZ~30KHZ A-weighted

Line (Trim @ Min﹐ Fader set ”0”)< -90dB 20HZ~30KHZ A-weighted

Maximum Voltage Gain

Mic to Main (bal)70dB

Line to Main (bal) (Mono Ch) 43dB

Line/Tape to Main (Stereo Ch) 33dB

Aux Return to Main 25db

Mic to Aux Send 75dB

Line to Aux Send (Stereo Ch) 30dB

Residual Noise (30 kHz LPF, all control Min)

Main (All fader min) -100dBu A-weighted

Aux Send (All fader min)-105dBu A-weighted

Crosstalk (@ 1 kHz w/ 30 kHz LPF)

Ch vs. Ch ( Trim @ min﹐Fader set 0)>75dB A-weighted

Input vs. Output >60dB A-weighted

Maximum Input Level (1 kHz, ± 3dB)

Mic Input (Mono Ch) +16dBu

Line Input (Mono Ch) +40dBu

Input Channel Equalizer (± 3dB)

High  ±15 dBu

Mid±15 dBu

Low±15 dBu

PEAK Indicators

Mic (Mono Ch)+16dBu

Line (Stereo Ch)+16dBu

Phantom Power48V±3V

Headphone output (600 ohm load) +20dBu

Internal DSP Effects100 presets

USB Bus Power USB2.0 +5V DC 0.5A max

Dimensions (W x D x H) 15.3” x 14.5” x 3.9” / 391mm x 370mm x 100mm

Weight 8.3lb / 3.8kg
