MediaOne 10S

Media Bass

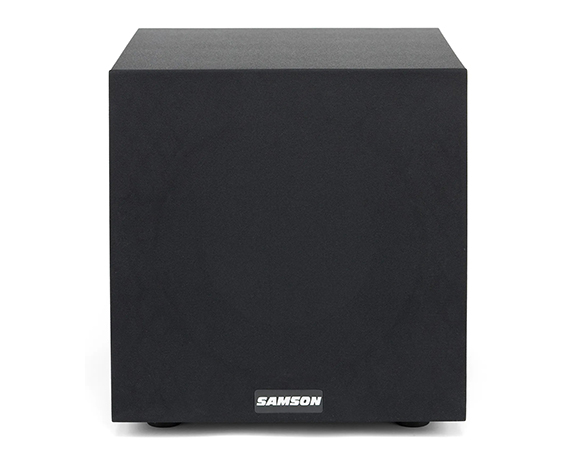

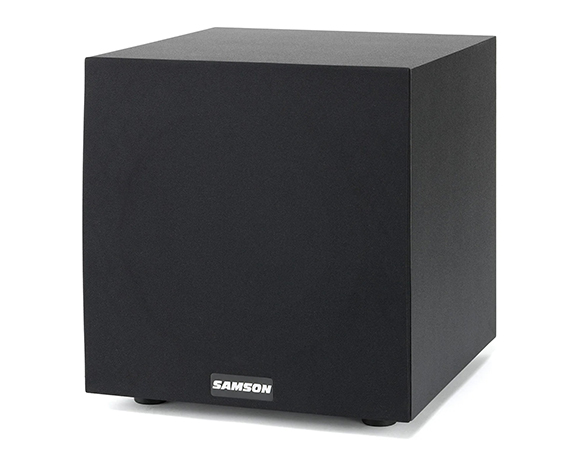

The MediaOne 10S has been designed from the ground up to provide accurate low frequency monitoring and produce engaging, clear bass. Featuring a powerful 10" copolymer woofer and tuned vented port, the MediaOne 10S adds extended low-frequency response to any monitoring setup. In addition, its all-wood cabinet construction and stylish protective grille ensure that the subwoofer looks as good as it sounds in your home studio, living room or den.

Making Connections

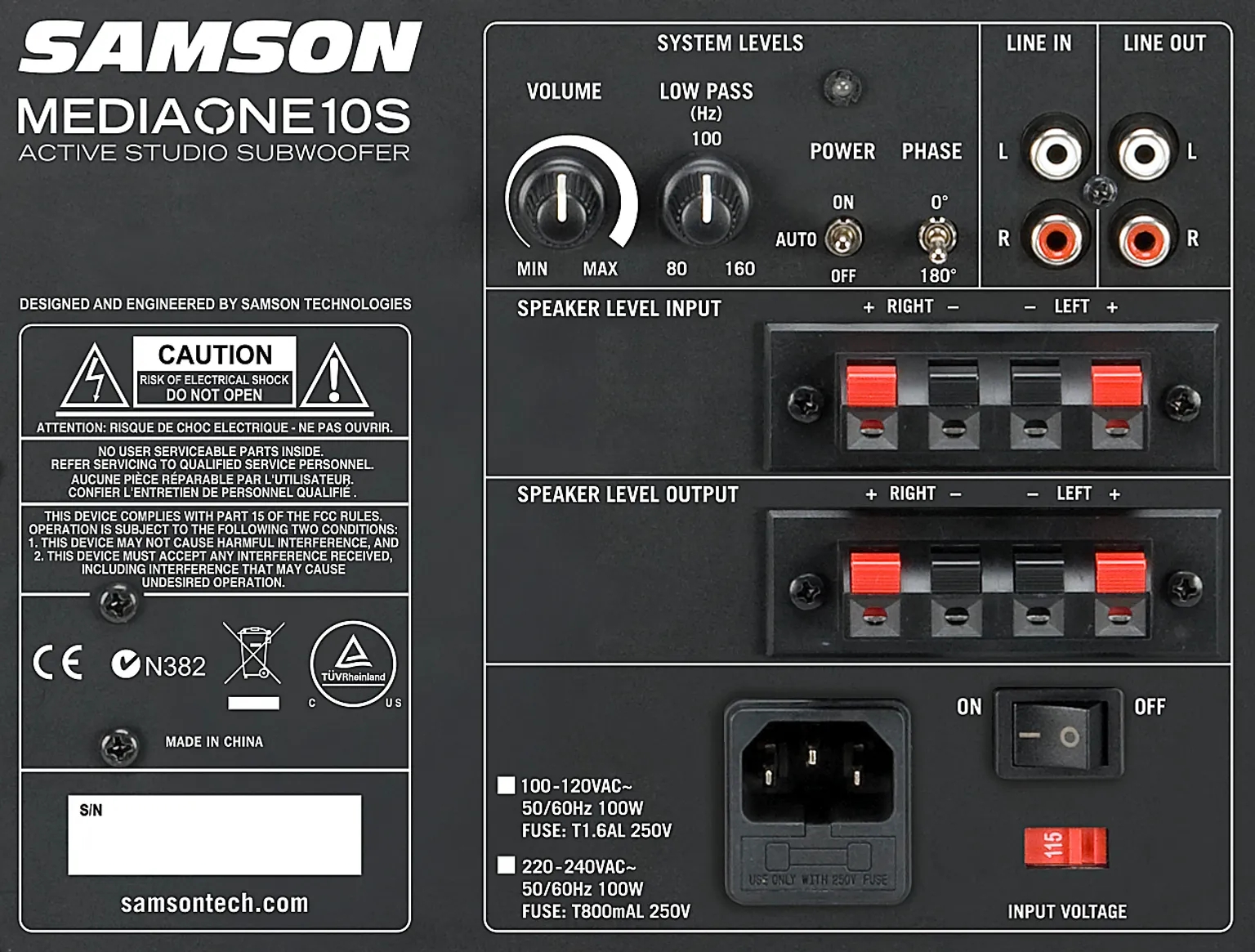

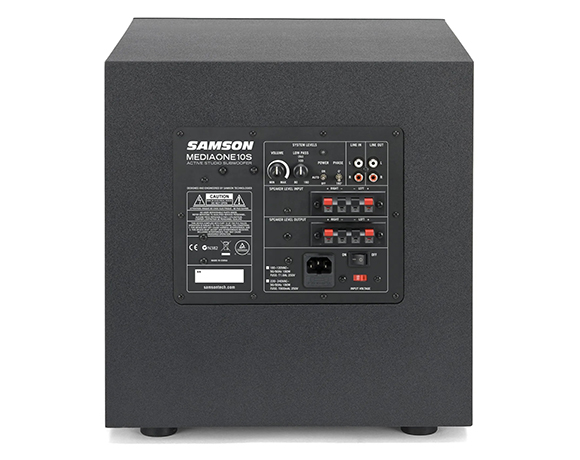

The rear panel of the MediaOne 10S features RCA inputs for direct connection to your music source and RCA outputs for connecting to your main monitors. It also features speaker-level inputs and outputs for connecting A/V receivers and/or additional speakers to expand your home theater setup. In addition, the MediaOne 10S offers a variable low-pass frequency control so you can customize your low-frequency response.

• 100 watts of power

• 10" copolymer woofer with butyl surround

• Down-firing tuned bass reflex port

• Variable Low Pass frequency control

• RCA inputs and outputs

• Speaker Level inputs and outputs for stereo system connections

• Phase switch

• Subwoofer Volume control

• Selectable Auto Sleep mode

• Protective mesh grill

Woofer10”, Long Excursion Transducer

Enclosure TypeBass Reflex System

EnclosureVinyl wrapped MDF cabinet with mesh grille

Frequency Response 35Hz - 300Hz ±3dB

Crossover Frequency100Hz 12db/oct Linkwitz Riley

Low Pass Filter80-160Hz

Output Power100 Watts RMS <1%

Line Input ConnectorsUnbalanced RCA

Speaker Input ConnectorsPush Terminal

Line Output Connectors Unbalanced RCA

Speaker Output ConnectorsPush Terminal

ControlsVOLUME, LOW PASS, AUTO ON POWER, PHASE

Power Consumption100W

Dimensions14.17" x 12.75" x 16.1" / 360mm x 324mm x 409mm

Weight27.33 lb / 12.4 kg
