RS115A

Power and Drive(rs)

Featuring a bi-amplified design (separate high and low frequency amplifiers), the RS115A offers greater efficiency, more accurate sound and an impressive 400 watts of power. This power is delivered by a 15" extended-range woofer with a large 2.5" voice coil that provides excellent coverage and clarity, while keeping the low end tight and punchy. Meanwhile, its 1-inch tweeter adds smooth, crisp highs to create a balanced sonic image.

Mix Matters

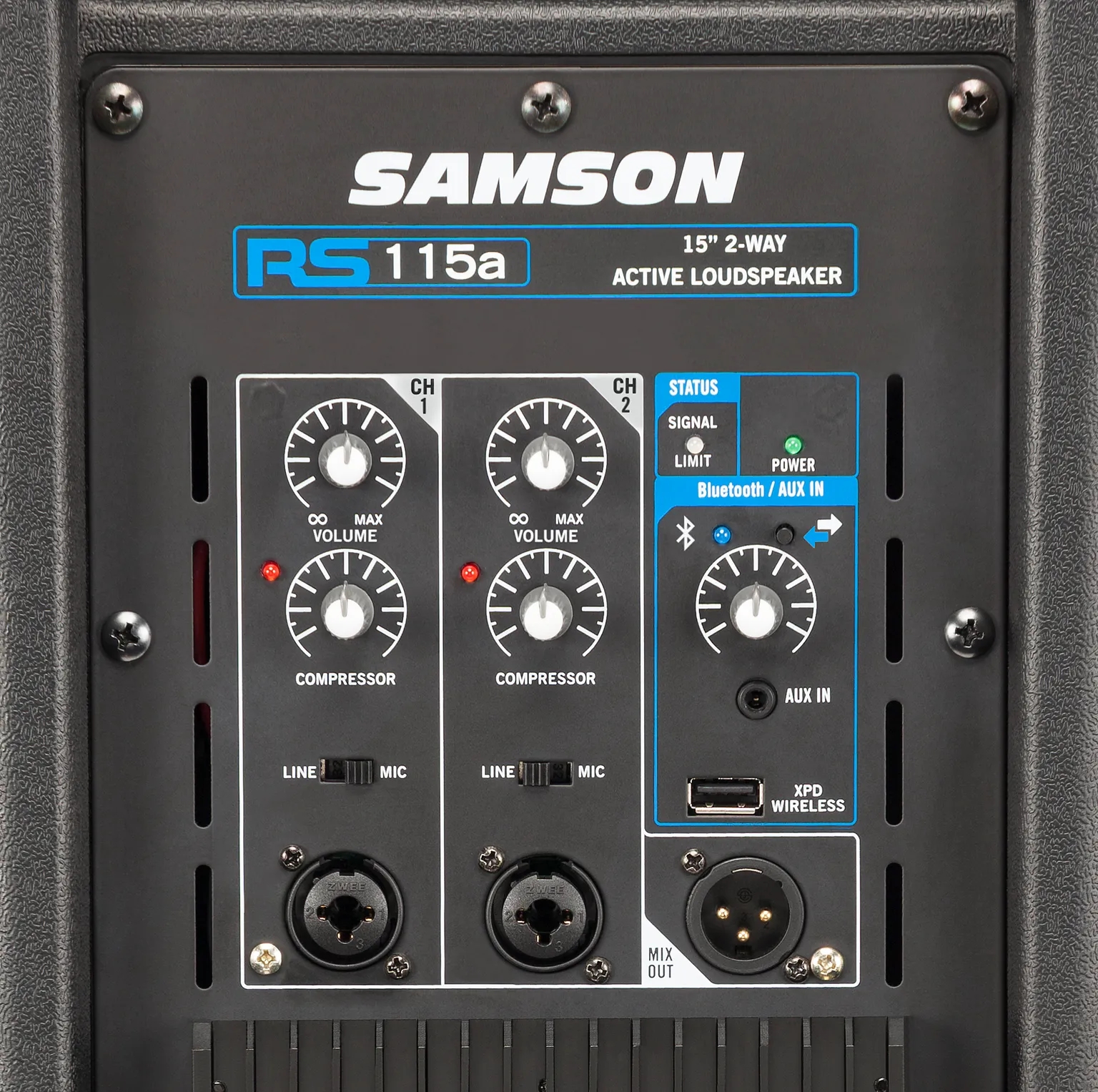

The RS115A speaker features an on-board mixer with two selectable mic/line XLR-1/4" combo input channels with variable compressor controls. An additional channel provides a 1/8" line level input, Bluetooth connectivity, and a USB wireless port for use with Samson XPD wireless microphone systems (sold separately). The RS115A also features an XLR mix output for daisy-chaining additional speakers to expand your sound system.

Protection and Placement

In addition to its high-impact polypropylene cabinet construction, the RS115A features a full-metal grill for maximum component protection. Each cabinet offers horizontal/angled floor monitor positioning, a 1 3/8" pole mount for stand placement, and four M10 fly points for permanent speaker installation. In addition, the RS115A includes convenient top and side carrying handles for easy transport.

• 2-way active loudspeaker

• 400 watts Peak/200 watts RMS of power

• 15" extended range low frequency driver with 2.5" voice coil

• 1" high frequency driver

• Two selectable Mic/Line XLR-1/4" combo inputs with variable compressor controls

• Bluetooth connectivity to connect wireless music sources

• 1/8" (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)

• XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)

• Independent volume controls on all channels

• XLR Mix output for daisy chaining additional speakers

• Signal/Limit indicator

• Solid polypropylene enclosure with impact resistant design

• Three large ergonomic carry handles

• Integrated 1 3/8" speaker stand mount

• Four M10 fly points

• Horizontal/Angled floor monitor positioning

• Full perforated metal grille protects all speaker components

Output Power400 Watts Peak /200 Watts RMS

Max. SPL (1M)116dB

Frequency Response50Hz – 20kHz

Low Frequency15” (381mm) Woofer, 2.5” (63.5mm) Voice Coil

High Frequency1” (25.4mm), 1” (25.4mm) Voice Coil

Crossover Frequency3kHz

Crossover Type18dB/Oct

Horn Coverage90°H x 60°V

InputsBalanced XLR–1/4” Combo, USB XPD Wireless

OutputBalanced XLR Line Output

Contour Equalization100Hz & 12kHz Boost

Electronic ProtectionThermal, Overload, Analog (Optical) Limiter, Compressor

EnclosurePolypropylene

GrilleFull metal perforated

HandlesTwo side, one top

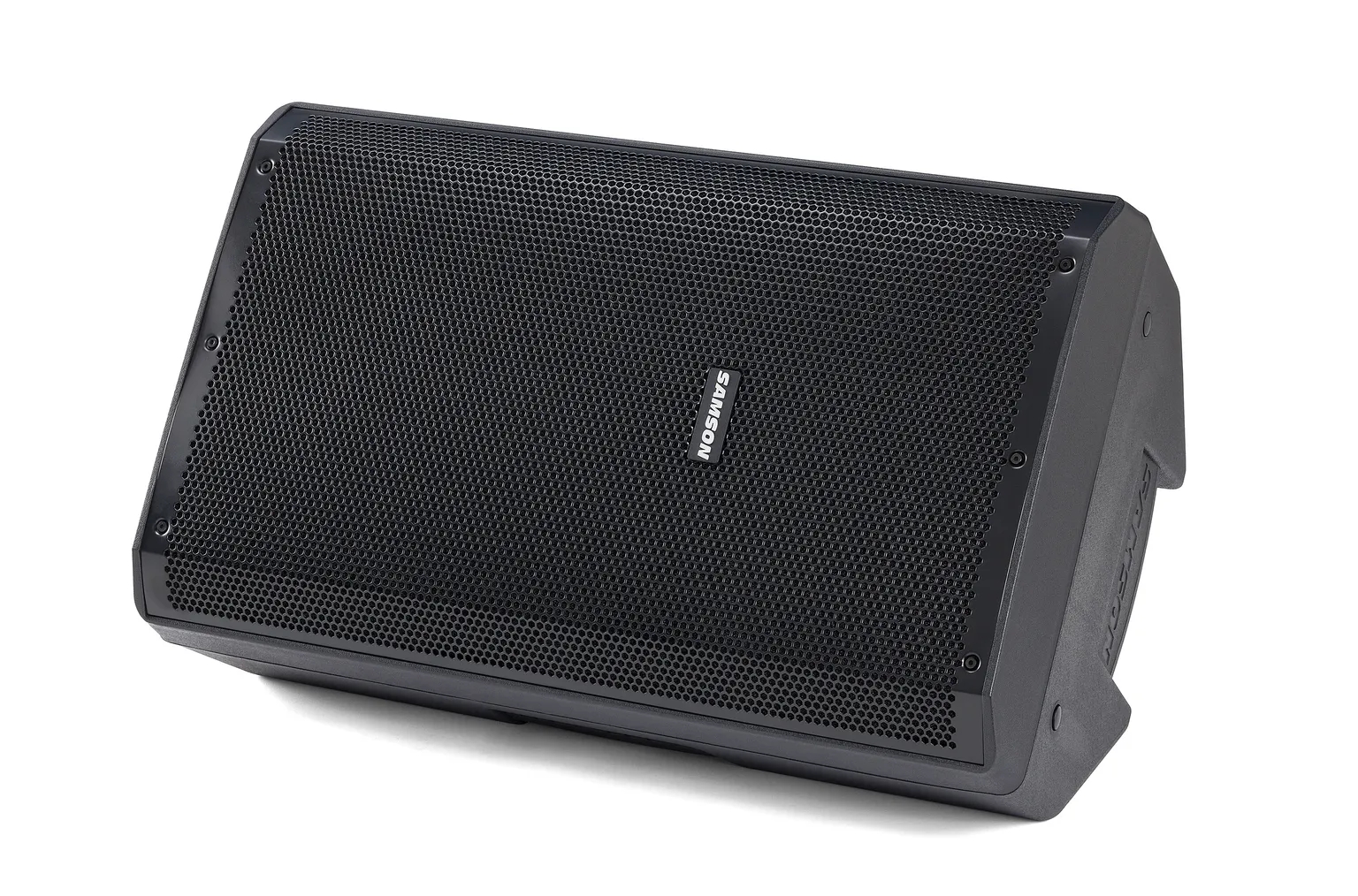

Monitor Angle45°

Mounting Method1-3/8” (35mm) Pole Mount Receptacle, 4 M10 Flypoints

Dimensions 15.2” x 14” x 24.9” /386mm x 356mm x 631.5mm

Weight32.6lb / 14.8kg
