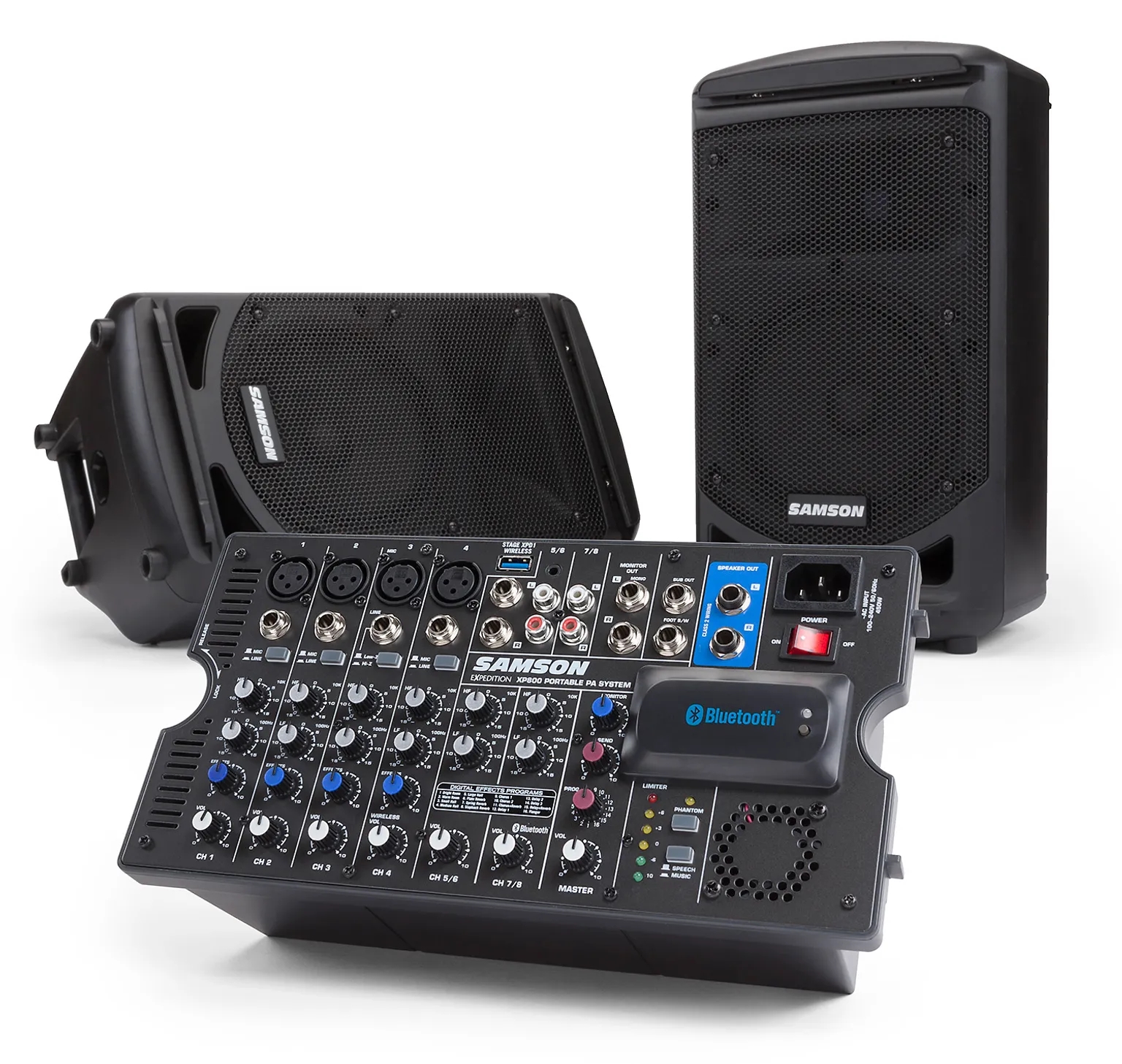

Expedition XP800

Flexibility and Convenience in One

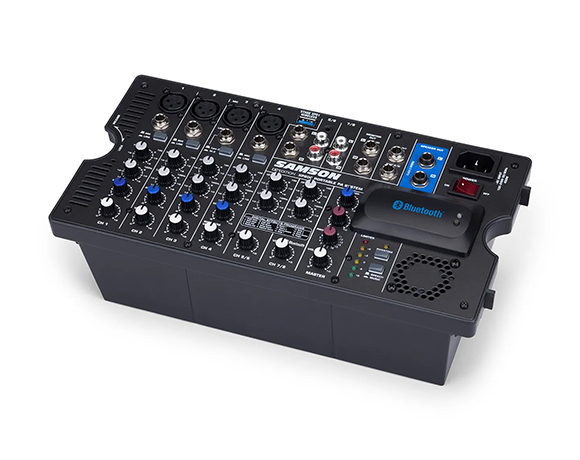

The XP800 is designed for flexibility and convenience. Its 8-channel mixer can be removed from the back of the speaker and used on a desktop. It has four inputs for connecting mic or line level devices and two more for connecting stereo signals. The mixer also has a built-in digital effects processor so you can add studio-quality effects to your voice or instruments. You can also play music wirelessly using the XP800's Bluetooth connectivity to stream audio from your smartphone, tablet or computer.

Portable Power

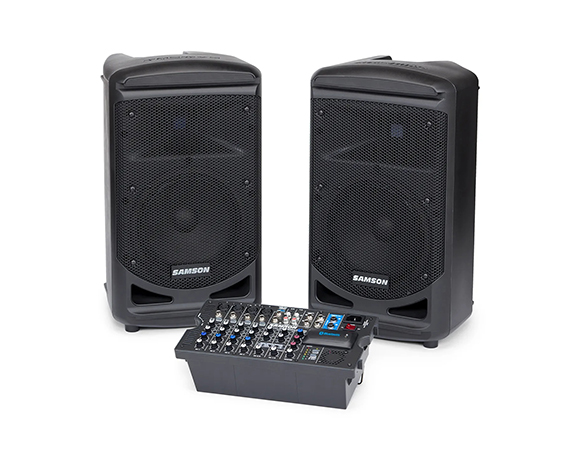

The system consists of two 8-inch 2-way speaker cabinets, an 8-channel, 800-watt powered mixer. The XP800 is ideal for a variety of settings, including education, business, and houses of worship. It's perfect for users who may have limited experience with PA systems, as it is easy to set up and use. With its powerful 800-watt mixer and convenient portability, the XP800 is the perfect solution for anyone looking to elevate their audio experience.

GO Wireless

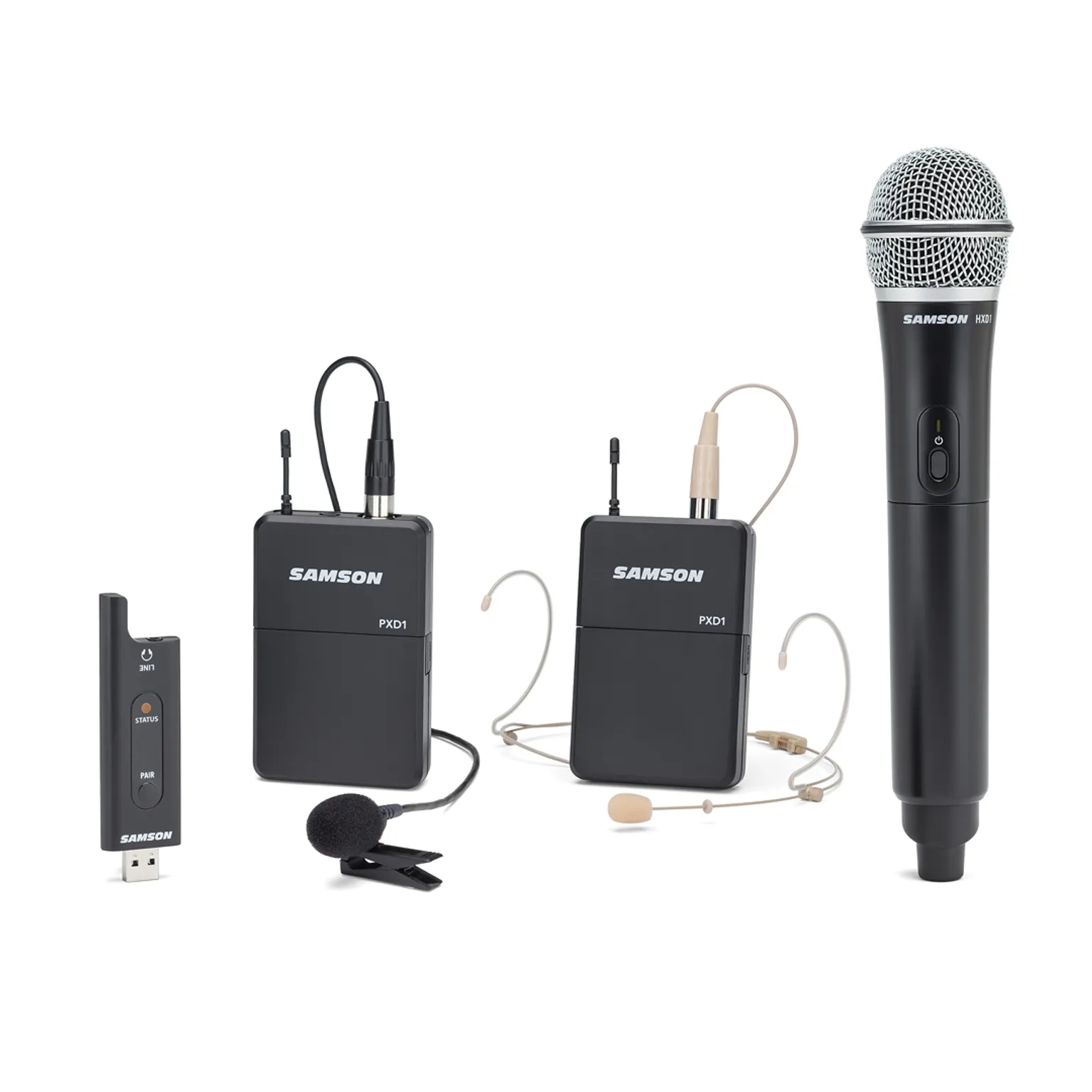

The XP800 includes a USB Wireless port for integrating the Samson XPD USB Digital Wireless Systems (sold separately), now available in handheld, headset and lavalier configurations.

Flex Your Sound

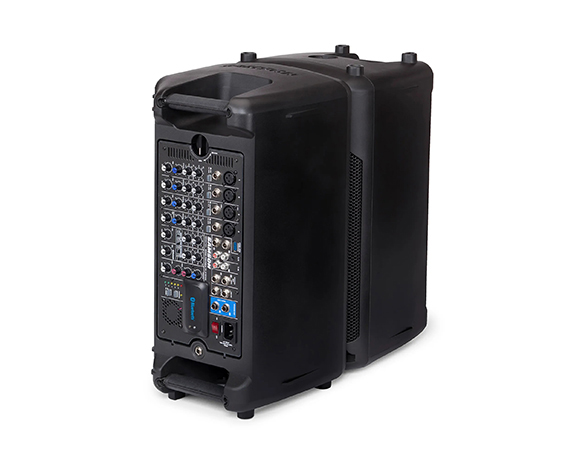

For enhanced portability, the XP800 features a unique slide-and-lock speaker design that allows the system and all its components to be packed and transported as a single unit weighing just under 40 pounds.

• 800-watt portable PA system

• Ideal for small to medium-sized venues (audiences of 100–200)

• Packs up into a single portable unit that weighs just over 40lb

• Lightweight Class D amplifier produces 2 x 400 watts of stereo power

• Dual 2-way speakers with 8" woofers and 1" HF drivers

• Bluetooth connectivity to wirelessly stream music

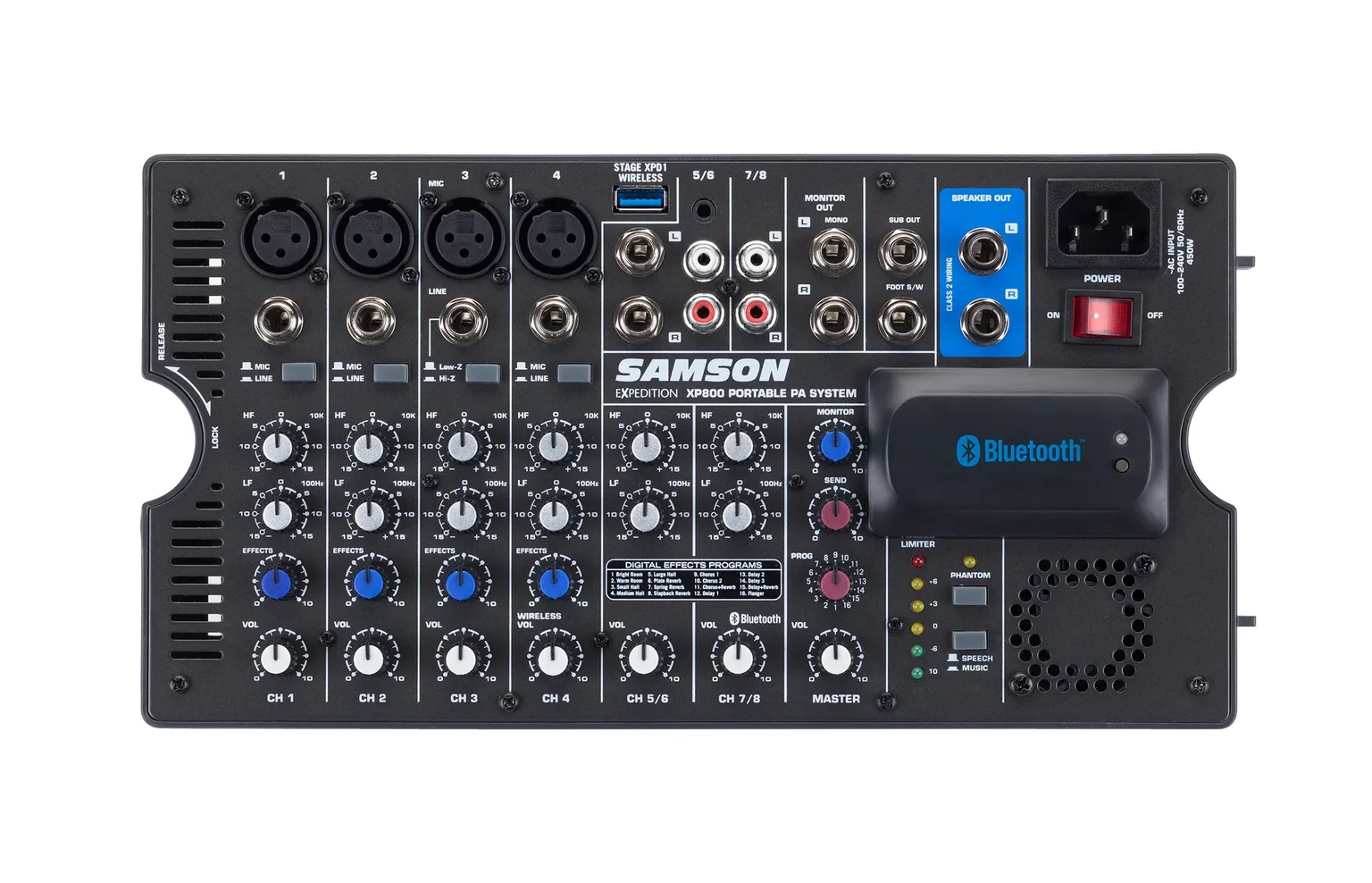

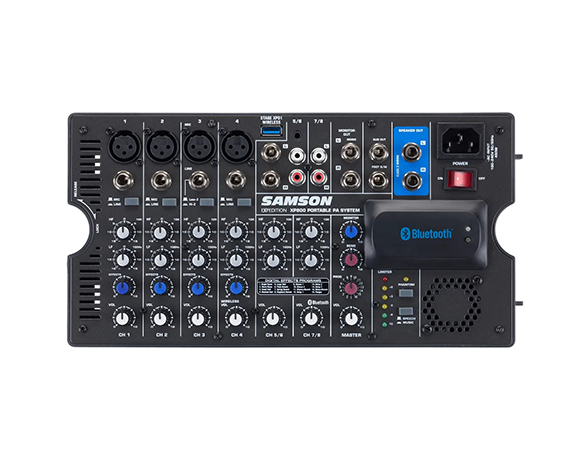

• Removable 8-channel mixer

• Four Mic/Line inputs (XLR and 1/4") for microphones and line level devices

• Hi-Z input for direct guitar connections

• Two stereo channels with multiple input options (1/4", 1/8", RCA) for connecting external devices (MP3 players, keyboards, etc.)

• USB Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)

• Bass and treble controls on each channel

• 16 presets of 24-bit digital effects with Send level control

• Footswitch jack for remote FX control

• Phantom power for condenser microphones

• Sub output for active subwoofers

• Music/Speech switch for optimizing output EQ for speech or music playback

• Stereo monitor outputs with level control

• Durable ABS high-impact plastic construction

• 1 3/8" speaker stand mounts

• Tilt-back design for using speakers as floor monitors

• Two 25" speaker cables included

Power800W @ 4Ω (400W per channel) Peak, 400W @ 4Ω (200W per channel) Average

Frequency Response20Hz–20kHz

Speakers8" woofer, 1" HF driver

Input Channels8 (4 mono, 2 stereo)

InputsXLR, 1⁄4” balanced, RCA, 3.5 mm stereo, Bluetooth, USB Wireless

Input Channel EQ (High/Low)10kHz/100Hz shelving ±15dB

Speech/Music Switch167Hz, 3dB/Octave

Effects16 Preset, 24-bit DSP

Outputs1⁄4” MONITOR, 1⁄4” SUB OUT , 1⁄4” Speaker output

Maximum Output Level+22dBu(MONITOR L/R & SUB OUT) @10KΩ

Phantom Power+15V DC, Fixed Phantom Voltage

BluetoothBluetooth 3.0, A2DP

Included Accessories2 x 25' 1/4" Speaker Cables

Product Dimensions20.1’’ x 10.6’’ x 19’’ / 510mm x 270mm x 485mm

Product Weight41.5Ib / 18.8kg
