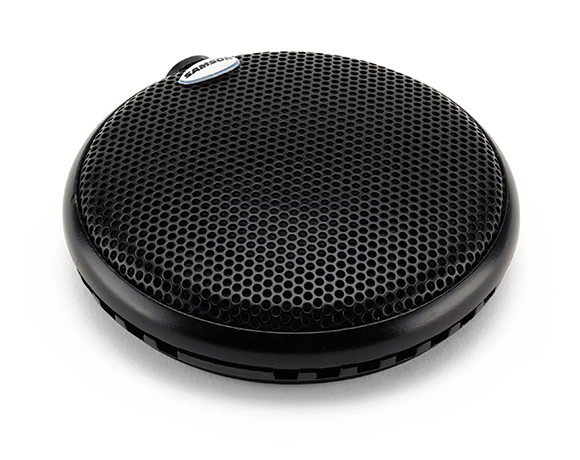

CM11B

-

Omnidirectional Boundary Microphone

left right
View Larger

  • Surface mount Omnidirectional boundary microphone

  • Condenser element

  • Half Omni Pickup Pattern

  • Internal Hi-pass filter

  • Mini XLR connector

  • Includes 30-foot cable with mini to standard XLR connectors

  • 9-52 Volt Phantom Power Operation

Element TypeFixed charge condenser

Polar PatternOmnidirectional

Frequency response30 - 18000Hz

Sensitivity-39dBV/Pa

Rated impedance600 ohms

SPL127dB

Dynamic range103dB

S/N ratio70dB

Power Supply9~52V phantom supply

Power consumption4mA
