DEU1

-

Headset Microphone with USB adapter

left right

Put Your Voice in the Spotlight

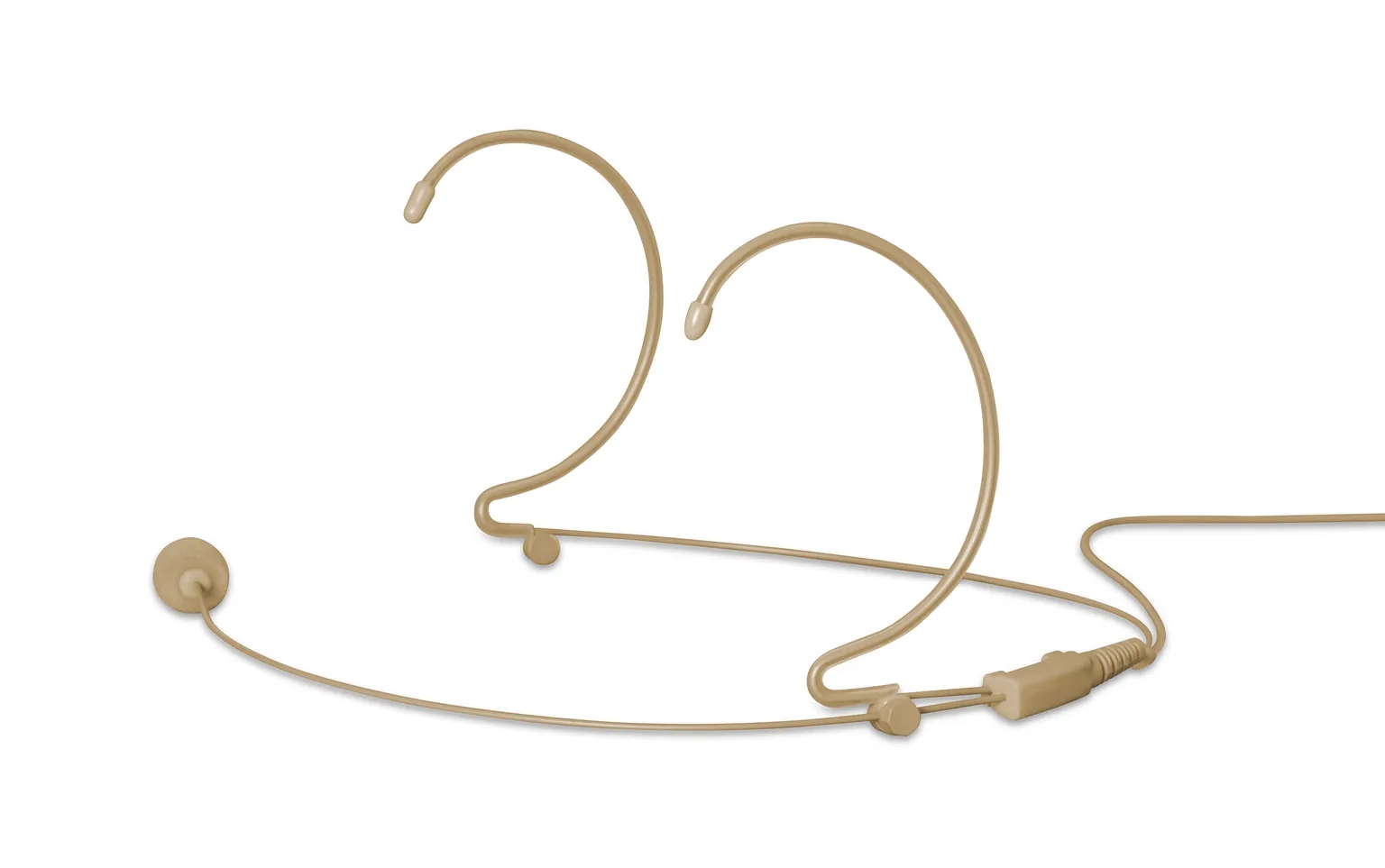

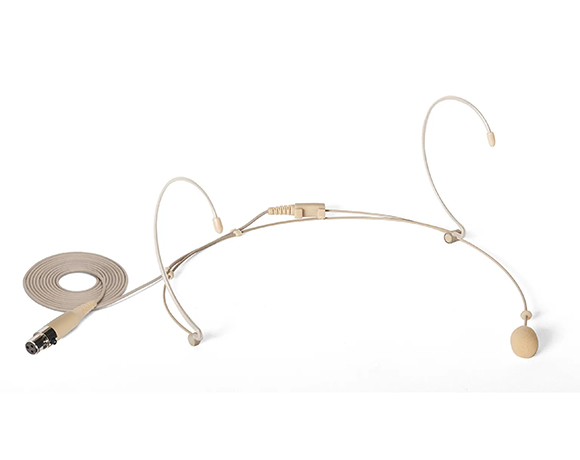

The DEU1 bundle includes a DE5, a low-profile headset microphone with a 5mm microphone capsule. An omnidirectional pickup pattern captures sound evenly in all directions without proximity effect or off-axis coloration. The result is clear, articulate voice reproduction regardless of the capsule's position relative to the sound source. The lightweight, binaural headset design provides a secure and comfortable fit.


Well Adapted

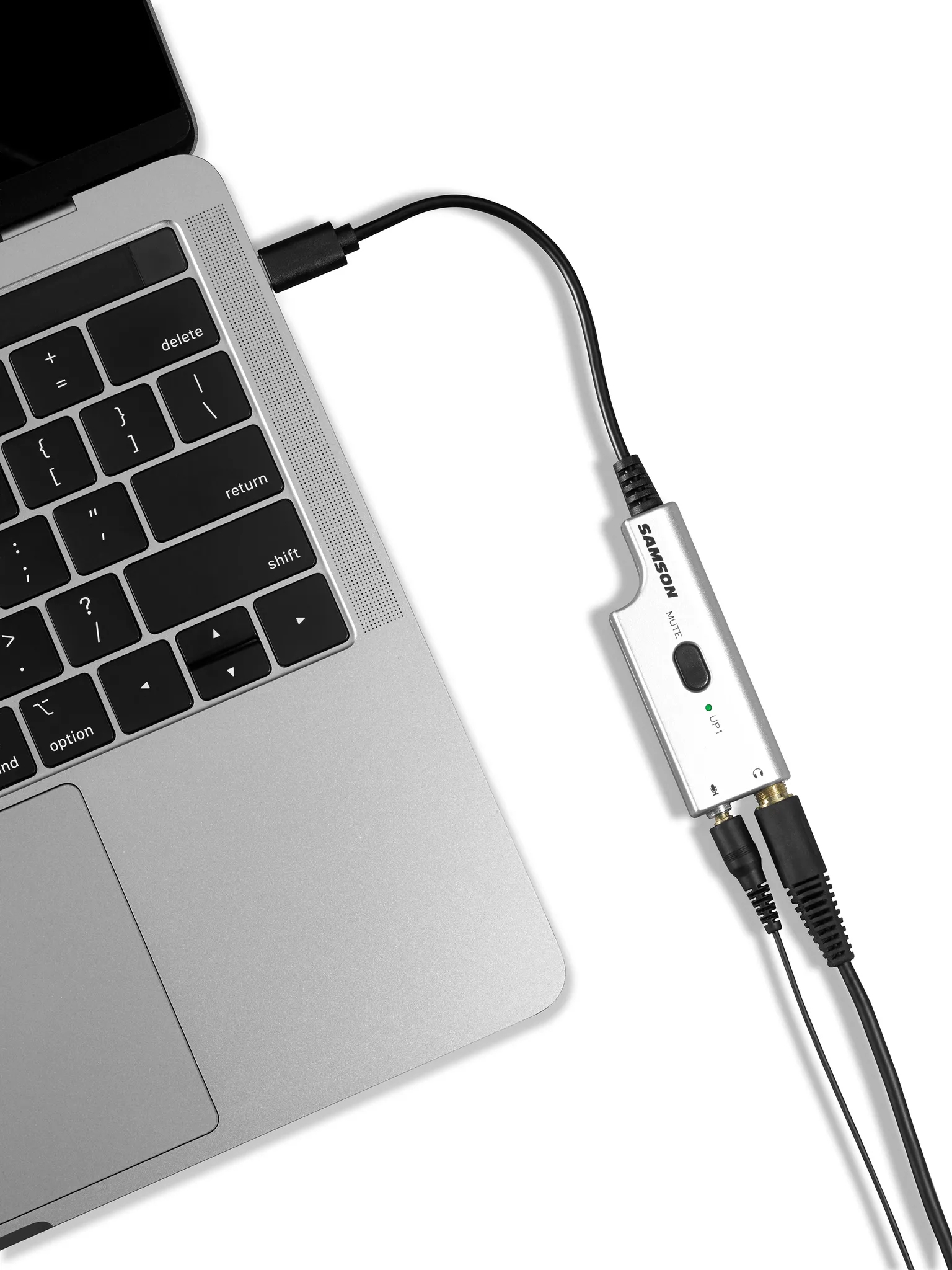

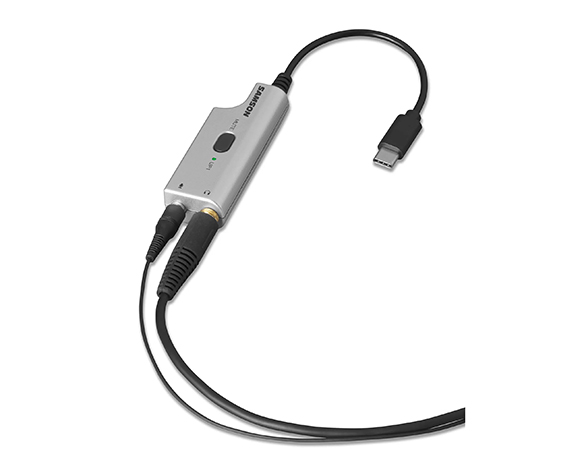

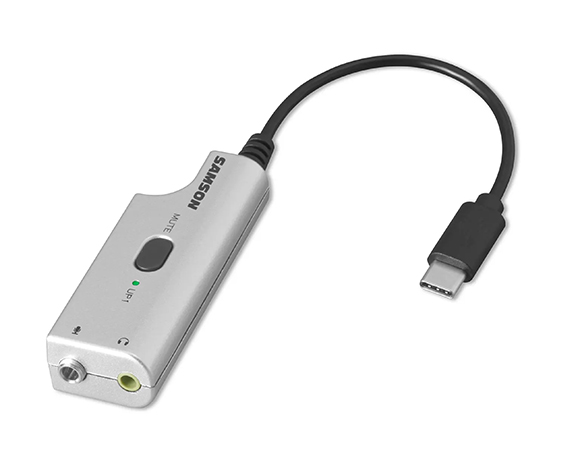

The UP1 is an analog-to-digital USB audio adapter with a 1/8" (3.5 mm) microphone input and a 1/8" (3.5 mm) headphone output. It features a USB Type-C connector and includes a USB C to USB A adapter for connection to any computer.


  • DE5 Omnidirectional Low-Profile Headset Microphone

  • UP1 USB Audio Interface with USB C connecter

  • Includes USB C to USB A adapter

  • 1/8" Microphone Input

  • 1/8" Stereo Headphone Output

  • Mute Switch


MicrophoneDE5 Omnidirectional Low-Profile Headset

Microphone Input1/8¡± mono input, T: signal +3VDC mic bias, R: n/c, S: ground

Frequency Response12Hz-18kHz, +0/-1dB

Maximum Input Signal+11dBu, ¡Ü1%THD+N, 100Hz-20kHz minimum gain settings

Noise Floor-89dBFS (A-wt.) minimum gain settings

Dynamic Range87dB (re 0dBFS, A-wt.), microphone gain setting: -1.1dB

Headphone Output1/8¡±stereo input, T: left channel, R: right channel, S: headphone ground

Frequency Response20Hz-18kHz, +0/-3dB

Maximum Output Power25mW (re 0dBVS, 22Hz-22kHz BW)

Noise Floor-95dBU (A-wt.)

Dynamic Range93dB (re-2dBU, A-wt.)

Digital to Analog Volume0dBFS USB playback = -2dBu headphone out

USB I/OUSB Type-C (USB2.0), USB C to USB A adapter included

Bit Depth16-bit

Sample Rate44.1kHz/48kHz

Power+5VDC, 100mA max

OS CompatibilityMacOS, Windows, Linux, iOS, Android

Weight0.67oz / 19g

Dimensions 8.25" x 0.9" x 0.6" / 210mm x 24mm x 15.75mm
