XPDm Handheld

Digital Wireless

The XPDm Digital Wireless System delivers high-quality audio using digital transmission at 2.4 GHz, with results that sound as good as a traditional wired microphone. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver, providing a higher signal-to-noise ratio than other wireless systems.

Completely Cordless

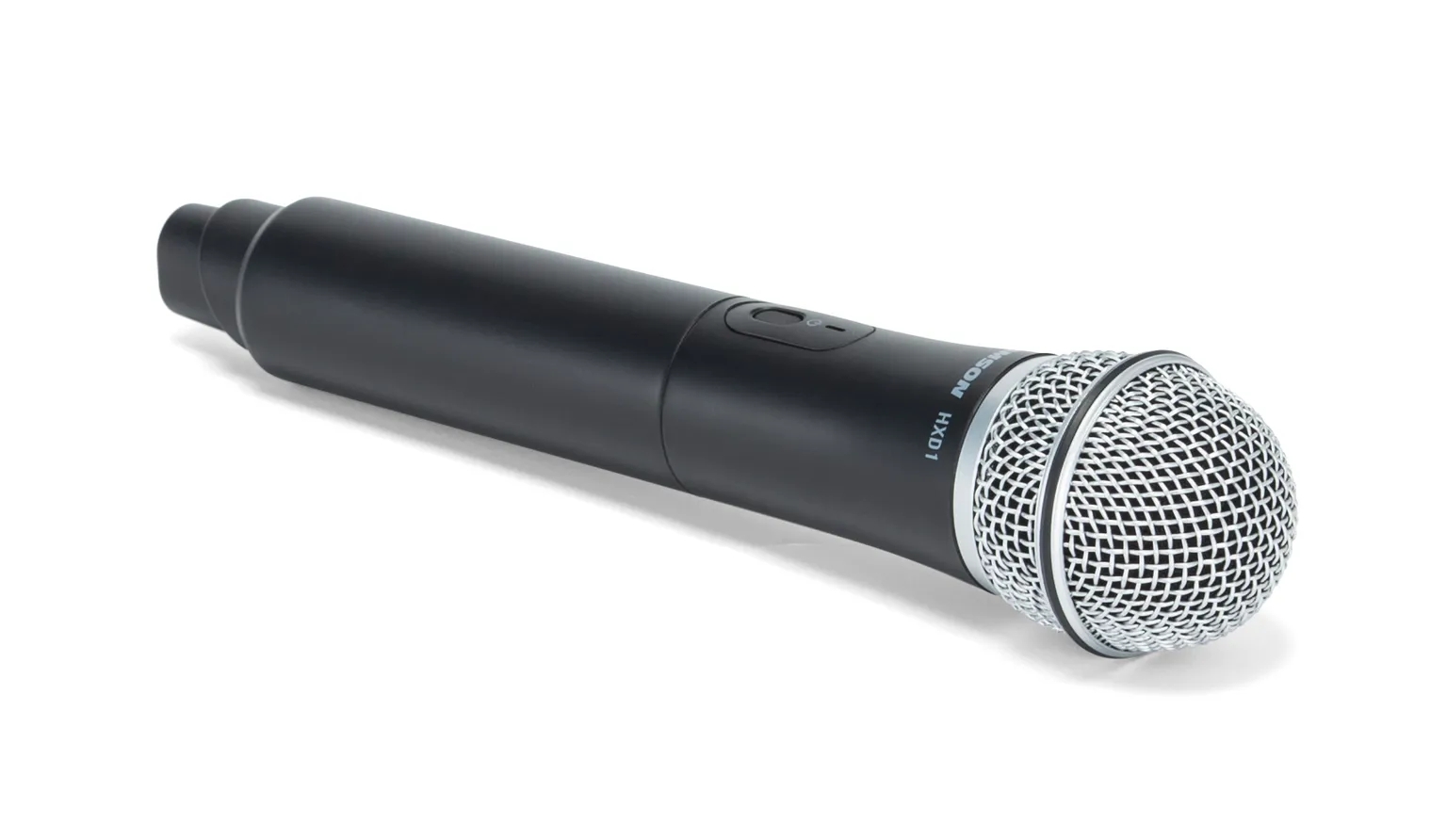

The HXD1 handheld transmitter provides completely wireless performance and captures vocals with absolute clarity. With 20 hours of operation on two AA batteries and an impressive 100' of wireless range, the HXD1 delivers reliable performance in any application. A Q6 microphone element provides wide dynamic range, and a multi-axis shock-mounted capsule minimizes handling noise for a reliable, professional-sounding wireless microphone solution.

More Ways to Connect

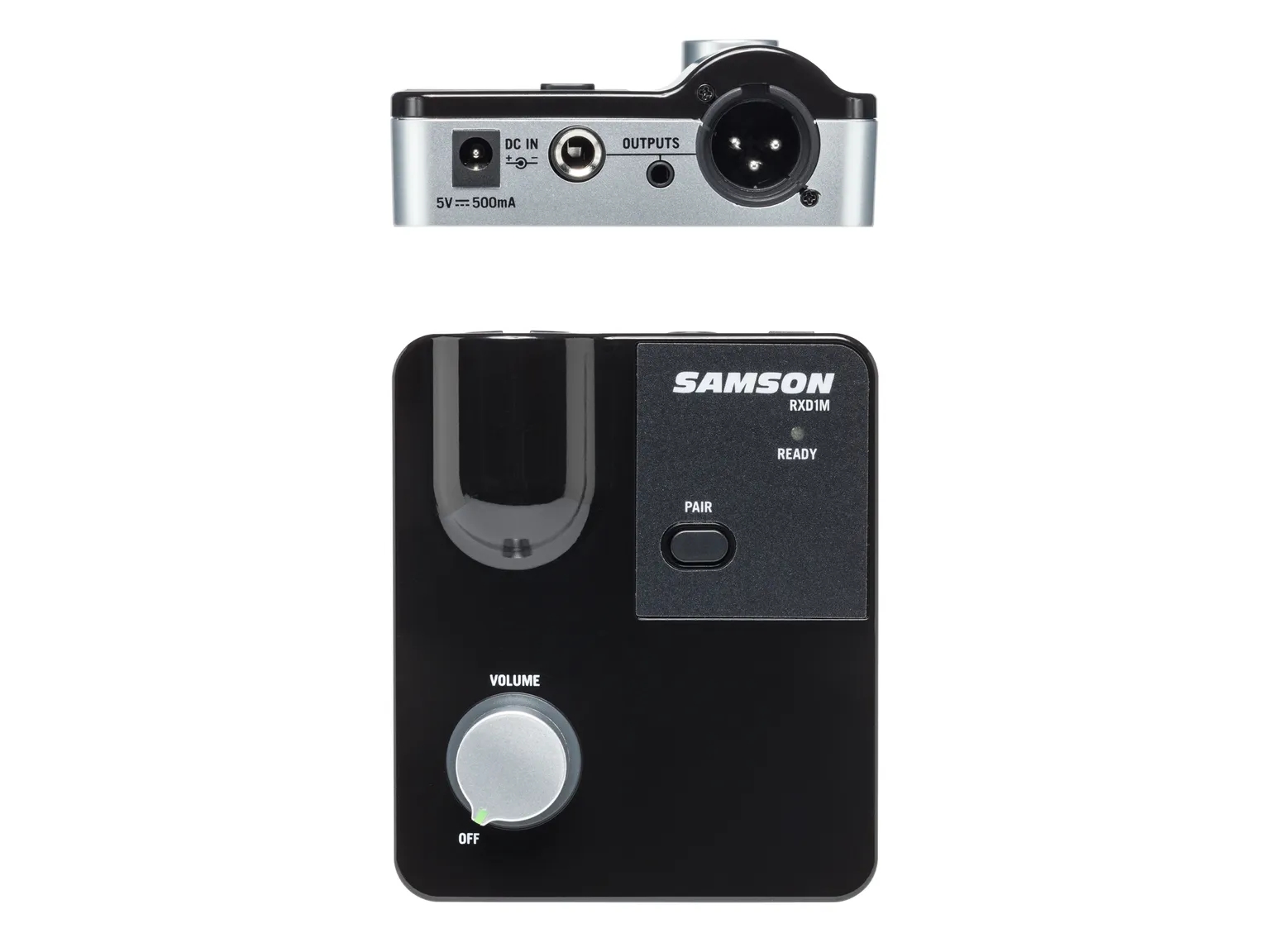

Easily integrate the XPDm handheld system into your audio setup with the lightweight and portable RXD1M receiver, which features XLR, 1/4", and 1/8" outputs.

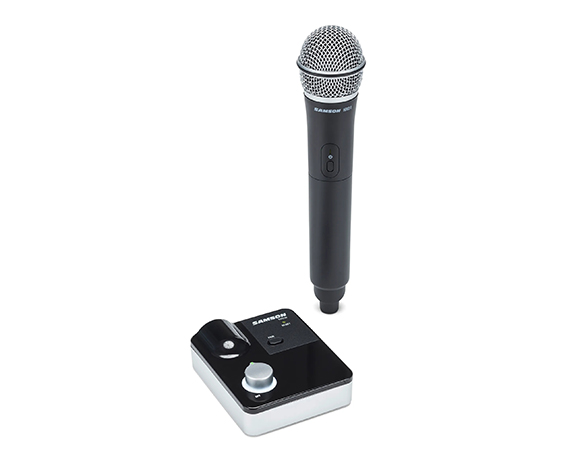

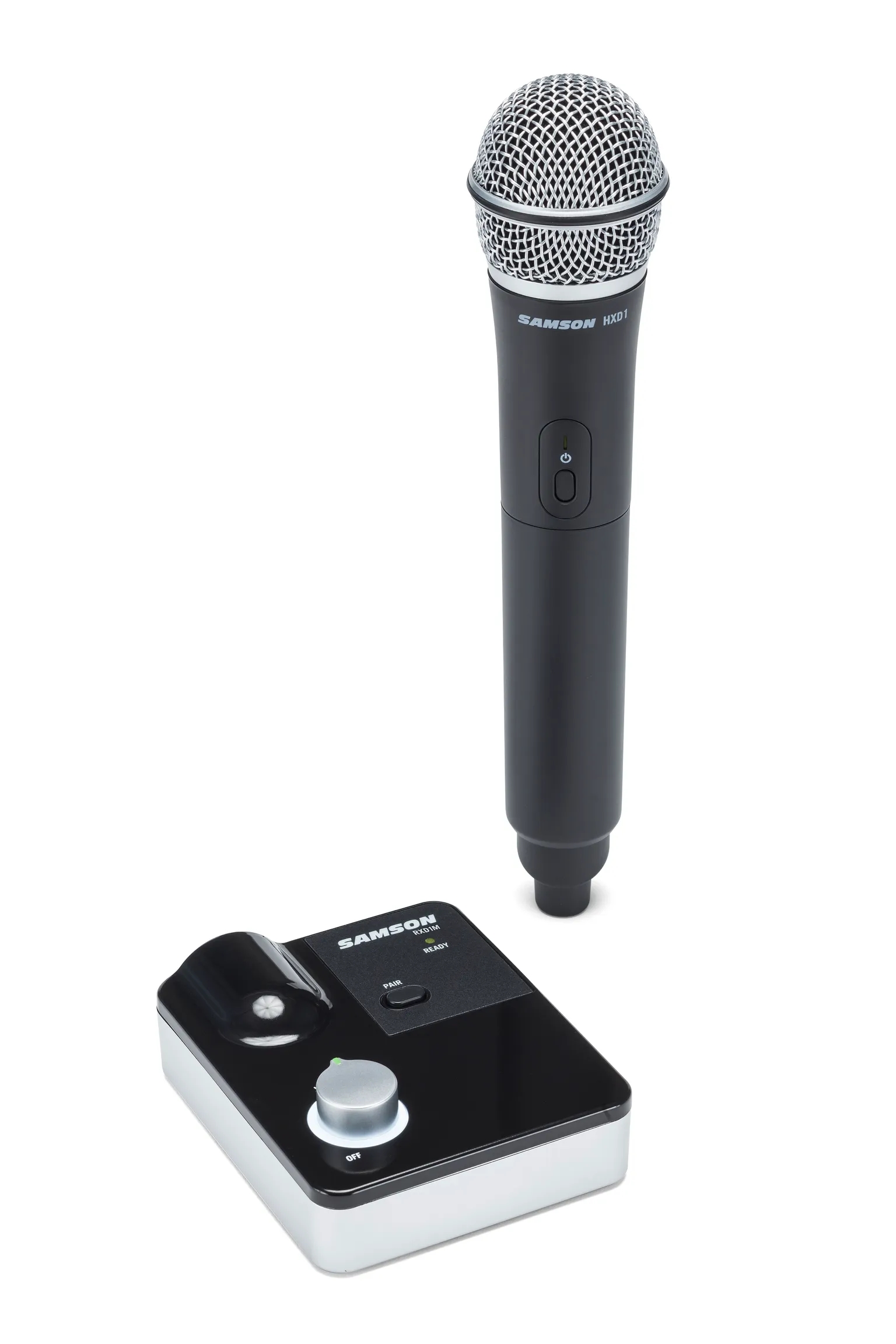

XPDm Handheld System

• High performance digital wireless system

• Operates on 2.4GHz License-free frequency

• 100’ (30m) line-of-sight operating range

HXD1 Handheld Transmitter

• Q6 Dynamic Microphone capsule

• Offers up to 20 hours of battery life using two AA batteries

RXD1M Tabletop Receiver

• Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs

• One-touch pairing button

• Rotary volume knob with integral power switch

System

Simultaneous Systems2

Working Range100’ line of sight

Working Frequency2.404~2.476 GHz

Modulation typeGFSK

Audio Frequency Response20Hz–16KHz

T.H.D<0.1% (at 1 kHz, -10 dBu)

Signal to Noise>85 dB

HXD1 Transmitter

Microphone ElementQ6 Dynamic

RF Power<10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life20 hours

Audio Sample Rate32 kHz

Dimensions10.2” x ø2.1” / 260 mm x ø54 mm

Weight0.5 lb / 218 g

RXD1M Tabletop Receiver

Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced)+4 dBu, 1 kHz, <0.6% THD+N

Audio Output Level XLR jack (balanced)+4 dBu, 1 kHz, <0.6% THD+N

Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) 110 ohms @ 1kHz

Audio Output Impedance XLR output jack (balanced)2.4Kohms @ 1kHz

RF Sensitivity-78dBm/20dB SINAD

Image Rejection>50dB

Operating Voltage5VDC 500mA

Dimensions4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm

Weight 0.33lb / 152g
