XPD2 Handheld

-

USB Digital Wireless System

left right

Easy Addition

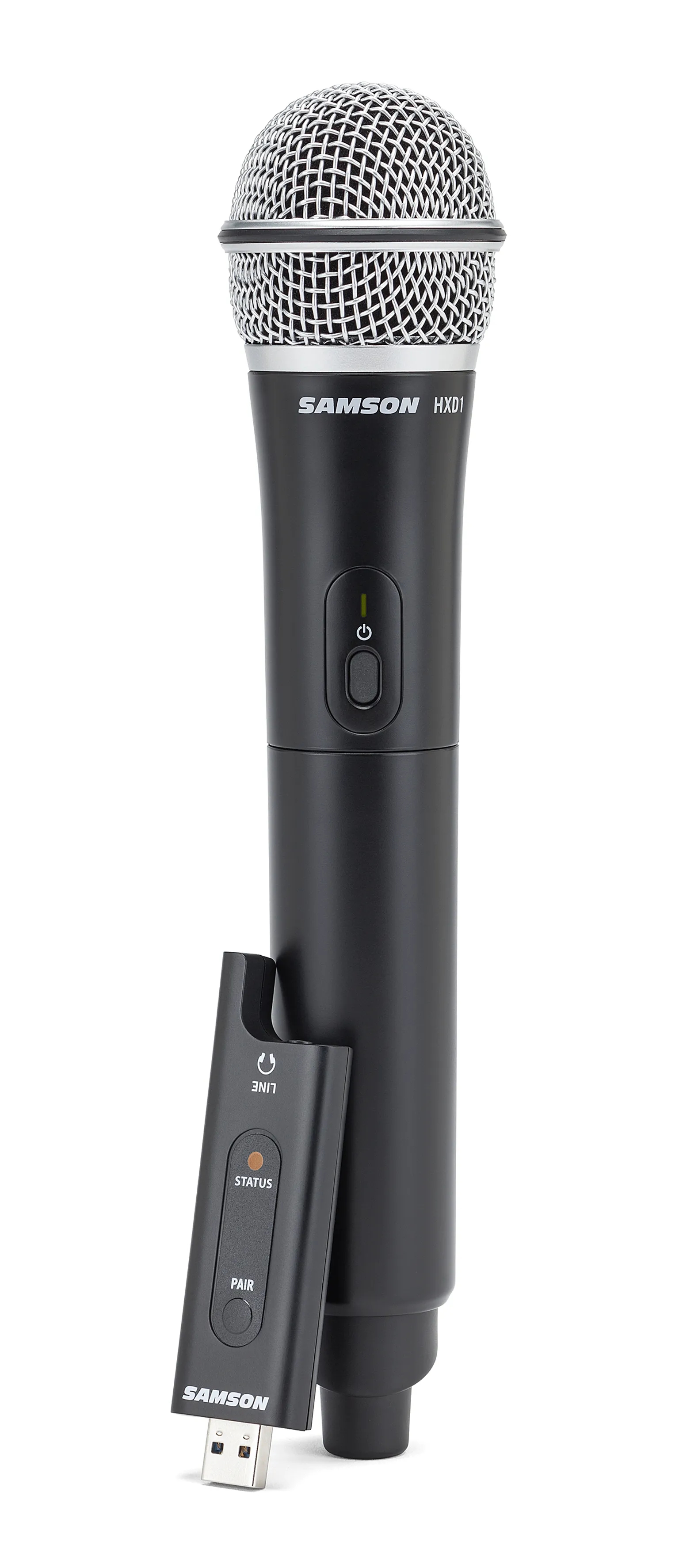

The XPD2 handheld system combines incredible audio quality, ease of use, and micro-receiver technology to make integrating wireless microphones into your audio production extremely easy and affordable.


More Ways To Connect

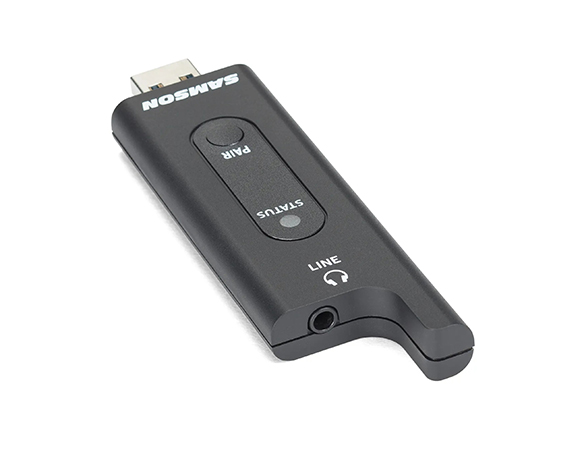

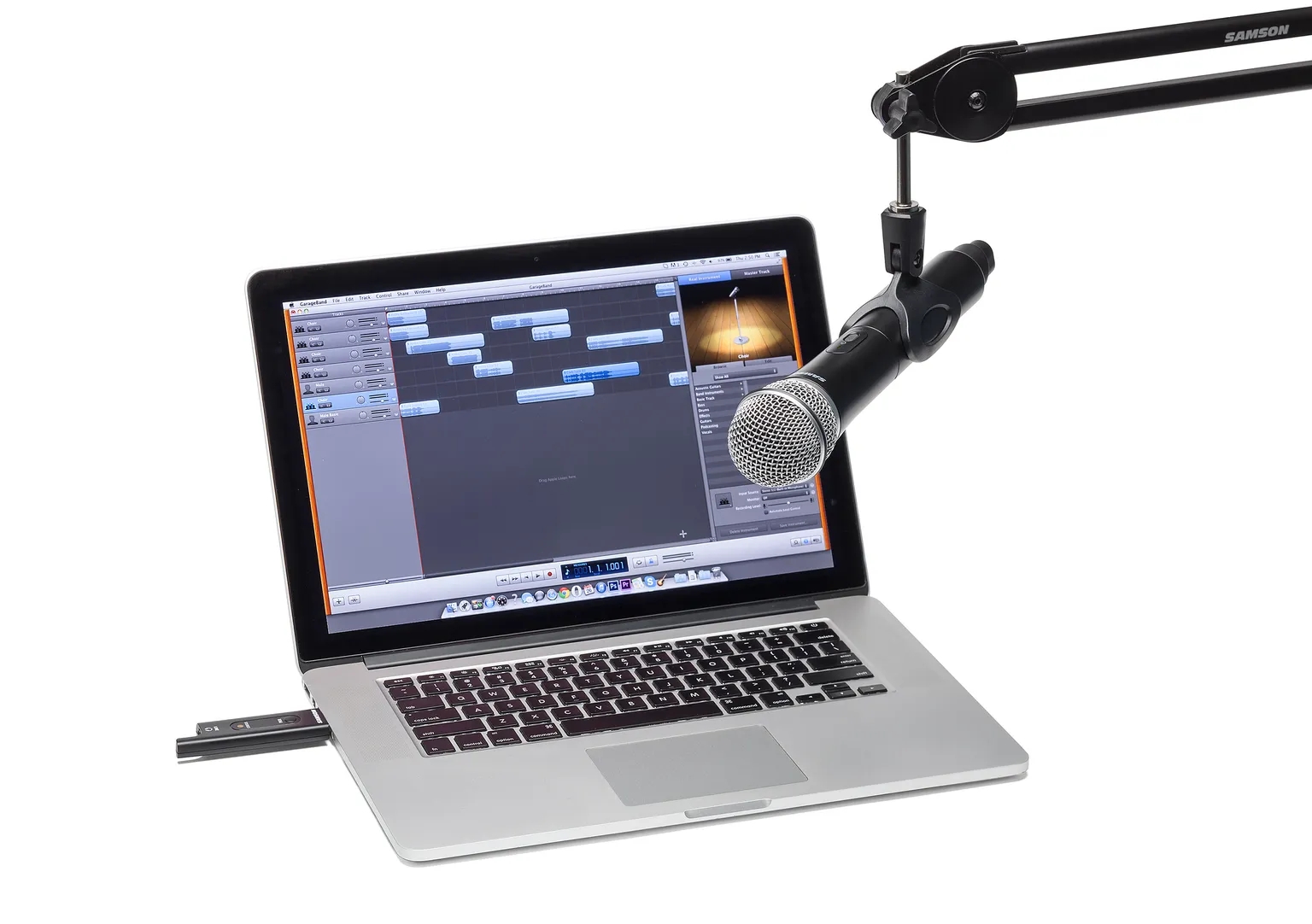

The RXD2 USB stick receiver connects directly to PC or Mac computers, or to any Samson Expedition Series Portable PA system that has a USB wireless port. An added feature from the previous generation system, the 1/8" (3.5mm) output allows for headphone monitoring, or the XPD2 handheld can be used with any device that has an analog line input, including smartphones and other mobile devices.

To connect to an iOS device, Apple's Lightning to USB Camera Adapter is required. To connect to an Android device, a host OTG adapter is required.


High-Quality Digital Sound

XPD2 Wireless delivers its high-quality audio through digital transmission. This type of wireless technology allows the HXD1 handheld transmitter to send an uncompressed signal to the receiver. The result is a higher signal-to-noise ratio compared to a traditional wireless system, and performance that sounds as good as a wired microphone.


More Ways to Connect

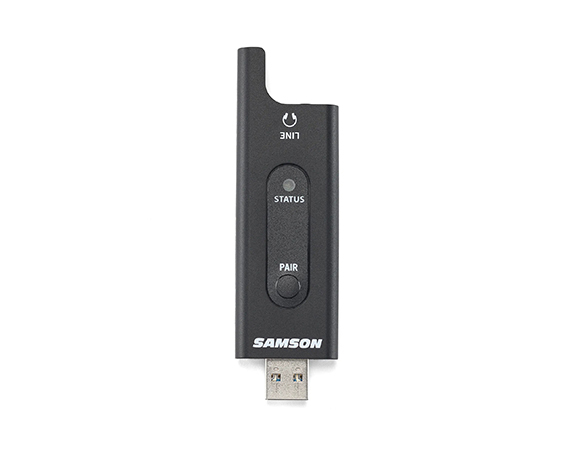

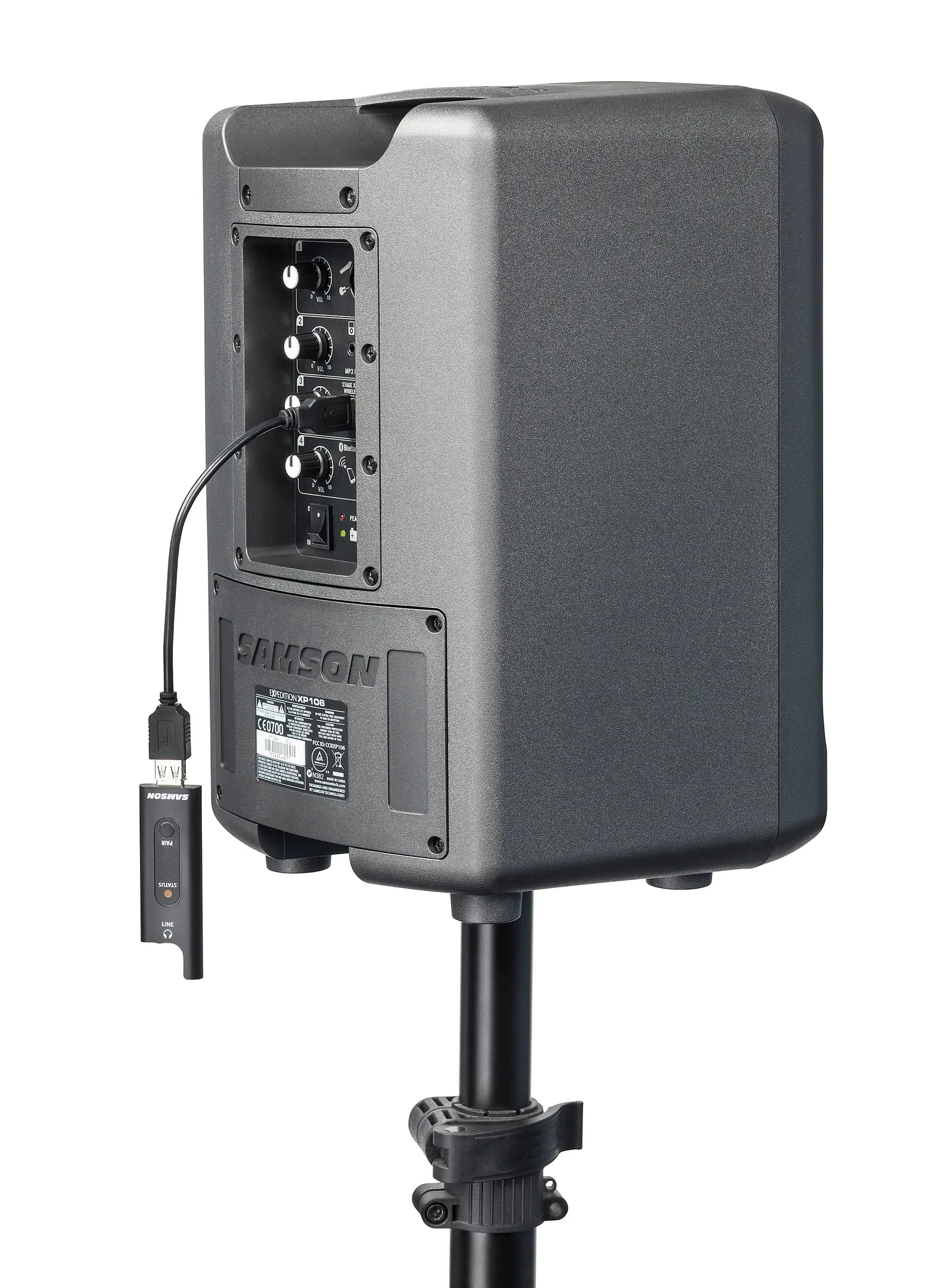

A streamlined setup is essential to empower any active performer or presenter. The RXD2 USB key receiver easily connects to any Samson Expedition Series portable PA system or mixer with a USB wireless port. The RXD2 has a 1/8" (3.5mm) analog output that can be used with headphones or to connect to other devices with an analog input. A USB-A to USB-C adapter is also included for use with other compatible devices*.

*iOS devices with Lightning connectors require Apple's Lightning to USB Camera Adapter.


  • 2.4GHz USB digital wireless system

  • Ideal for broadcasting, live streaming, presentations and more

  • Plug-and-play operation with Mac and Windows

  • Works with iPad via Apple's Lightning to USB Camera Adapter

  • Works with Android devices via a host OTG adapter

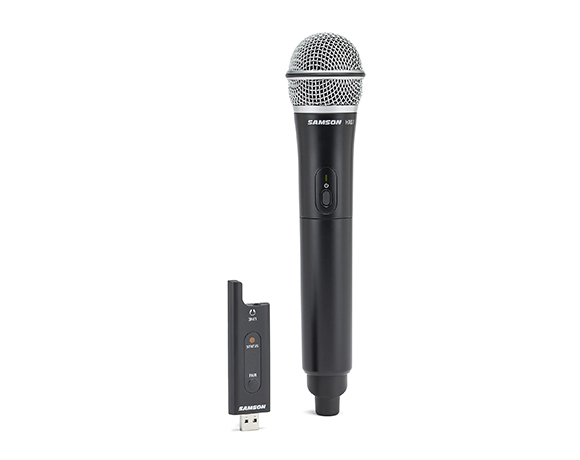

  • RXD2 USB stick receiver

  • Receiver features a 1/8" (3.5mm) headphone/monitor output

  • HXD1 handheld microphone transmitter with Samson Q6 Dynamic Microphone element

  • Transmitter offers 20 hours of battery life using two AA batteries (not included)

  • 100' operating range (line of sight, environment dependent)

  • 1-touch pairing, adjustable Volume controls on transmitter

  • Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports

  • Includes mic clip and USB extension cable

System

Simultaneous Systems2

Working Range100¡¯ line of sight

Working Frequency2.404~2.476 GHz

Modulation typeGFSK

Audio Frequency Response20 Hz ¨C 17 kHz (-1 dB)

T.H.D<0.1% (at 1 kHz, -10 dBu)

Signal to Noise>85 dB


HXD1 Transmitter

Microphone ElementQ6 Dynamic

RF Power<10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life20 hours

Audio Sample Rate32 kHz

Dimensions10.2¡± x ø2.1¡± / 260 mm x ø54 mm

Weight0.5 lb / 218 g


RXD2 Receiver

Max. Analog Audio Output Level9 dBu

Headphone Output22 mW into 16 ¦¸ or 32 ¦¸

Operating Voltage5V DC

Dimensions3.5¡± x 0.9¡± x .31¡± / 89mm x 23mm x 8mm

Weight0.35oz / 10g
