Concert 99 Presentation
-UHF Wireless System with LM10
Wireless To The Nines
The CR99 wireless receiver offers a total of 80 operating channels, allowing you to select the best frequency option for your area. Quick to set up, the CR99's Group Scan helps avoid conflicting frequencies, while its IR Sync feature allows users to wirelessly match the transmitter to the receiver's operating frequency.
Speak Loud and Clear
The Concert 99 Presentation System includes the CB99 Beltpack Transmitter and Samson's LM10 omnidirectional lavalier microphone. The CB99 transmitter offers eight hours of battery life using two AA batteries (not included) and features a variable gain control, a pop-free one-touch mute button, and a metal belt clip.
Freedom to Roam the Stage

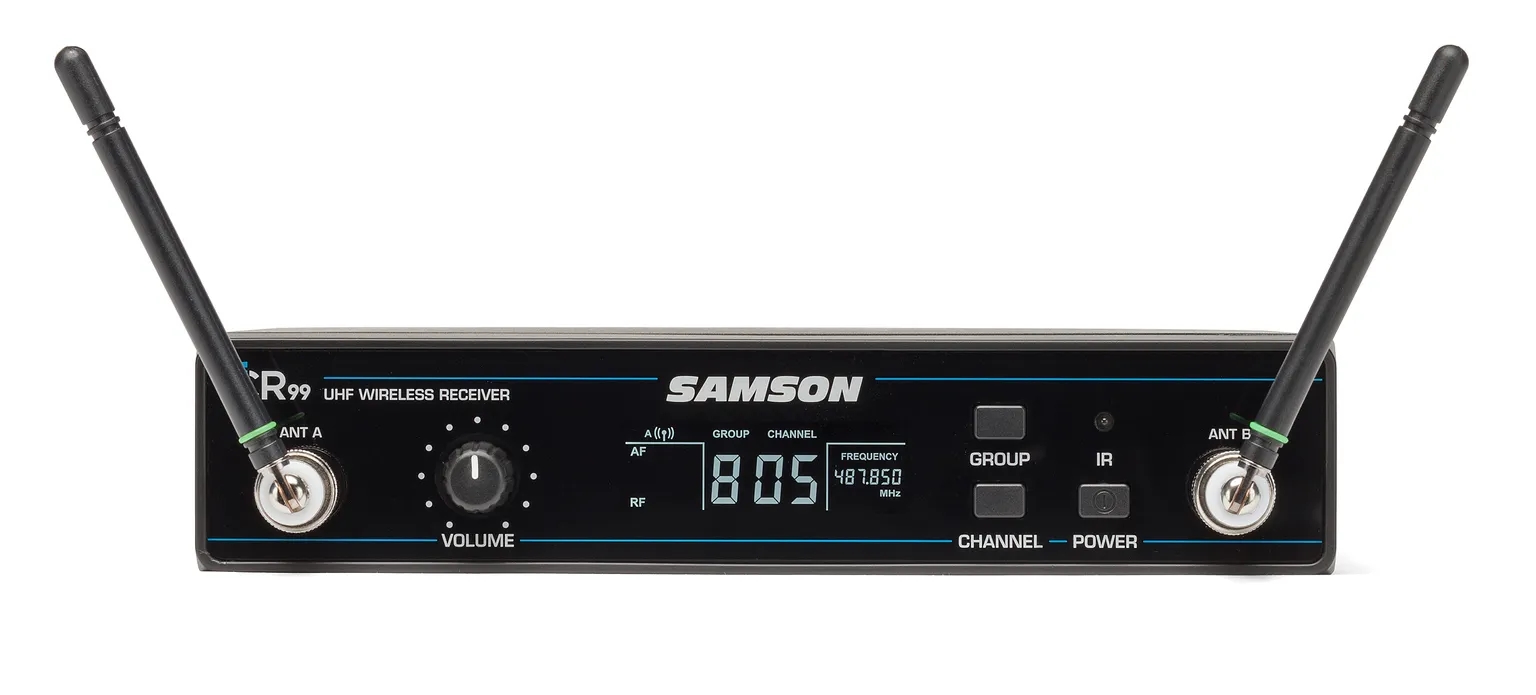

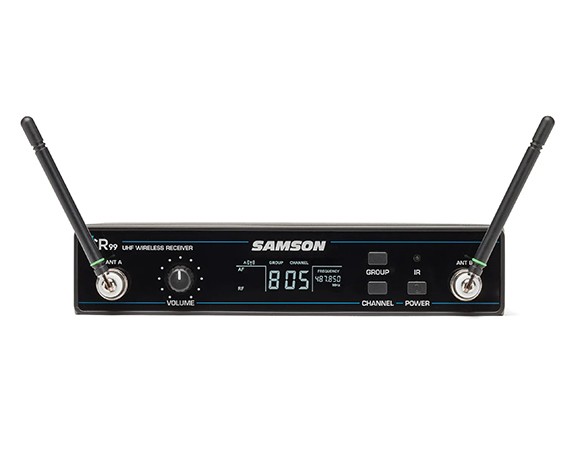

The extremely rugged, all metal, CR99 receiver features a bright, backlit LCD for monitoring on dark stages, even at long distances. The LCD also shows the exact battery life of your transmitter, along with the channel number and its corresponding UHF frequency. The receiver includes removable 1/4-wave antennas and features front and rear mounted BNC jacks.
Making Connections

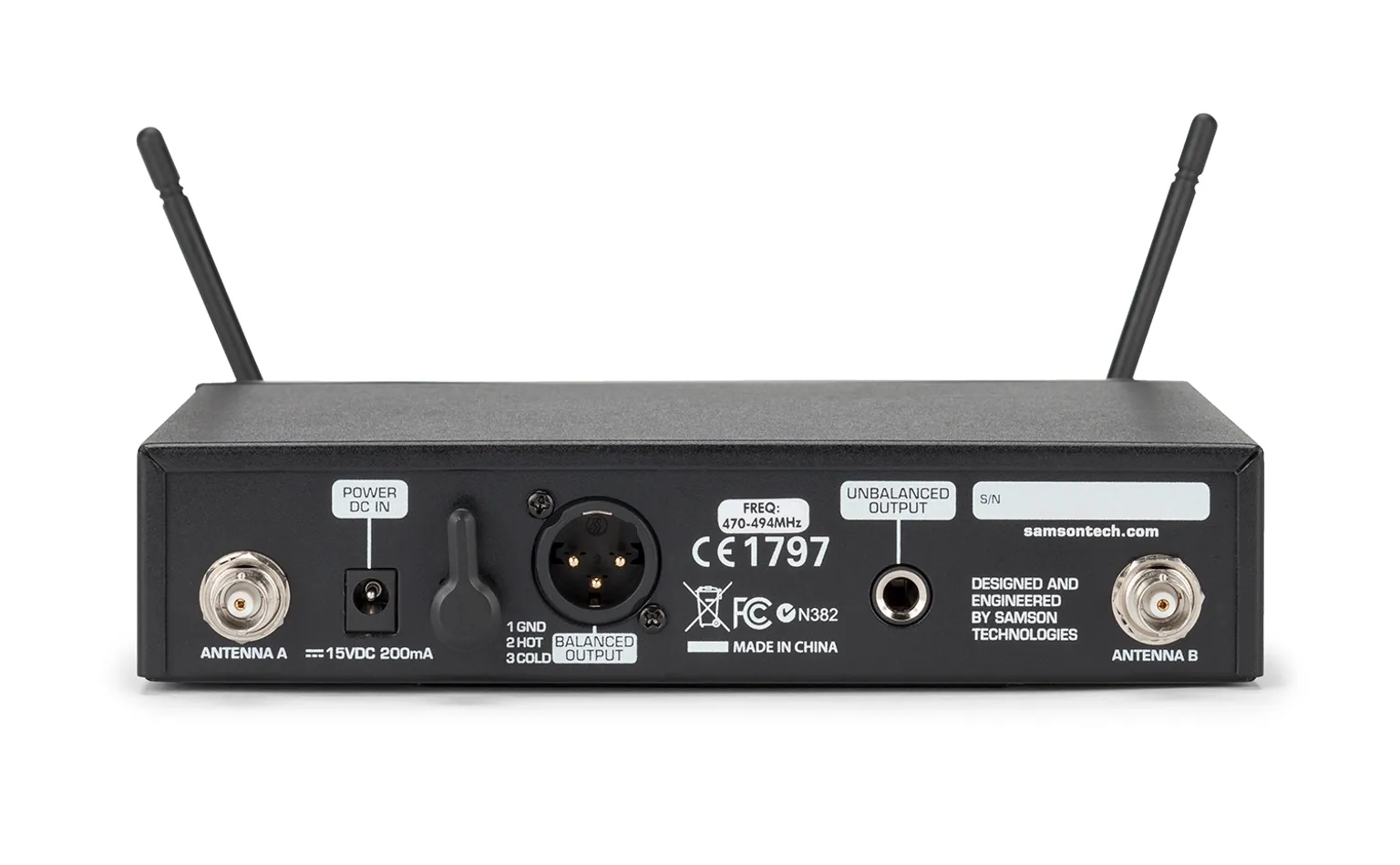

The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR99 receivers to be installed in a portable audio rack or fixed location.

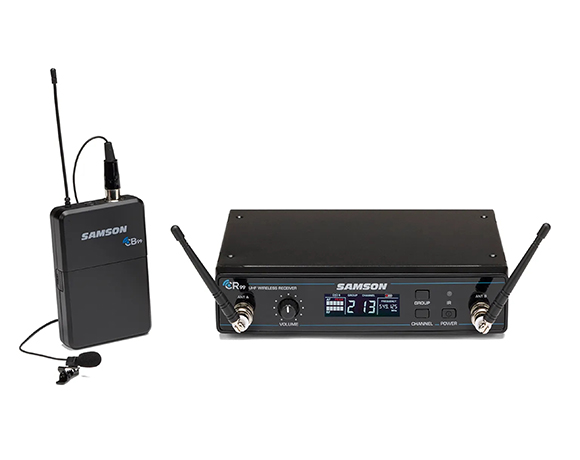

Concert 99 Concert 99 Presentation System
Frequency-agile UHF wireless system
80 operating channels across 24MHz bandwidth
Up to eight simultaneous systems per frequency band (region dependent)
AC adapter and rackmount kit included

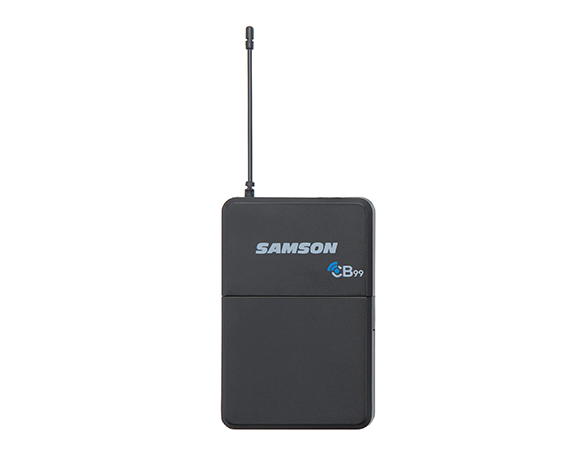

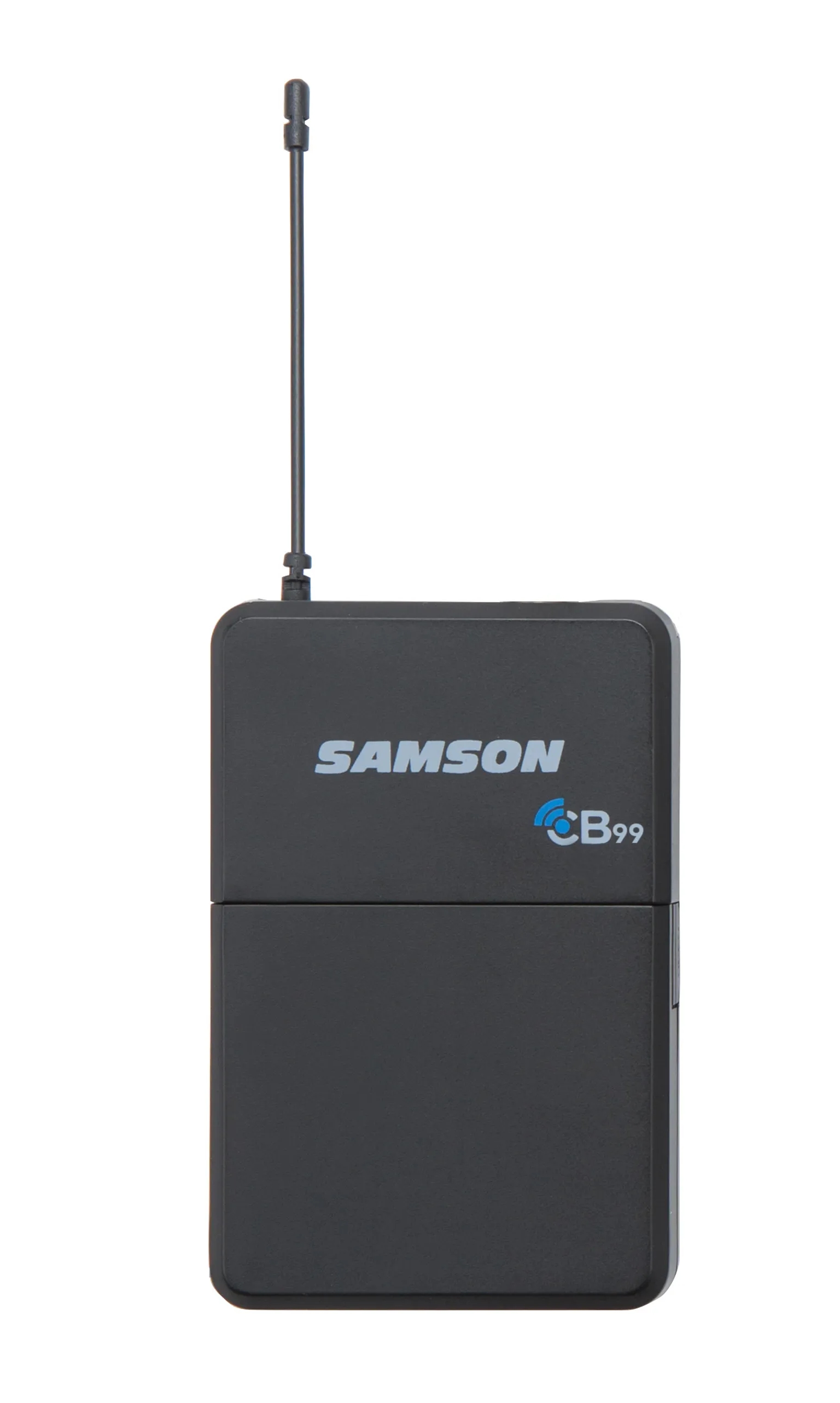

CB99 Beltpack Transmitter

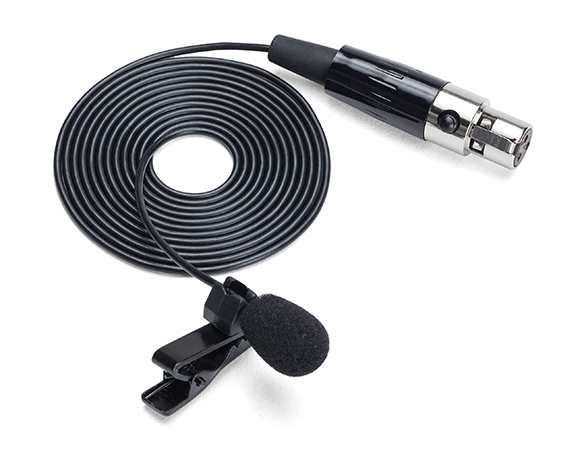

LM10 Omnidirectional Lavalier Microphone with locking connector
Offers up to eight hours of battery life using two AA batteries
300' operating range (line-of-sight)
Variable Gain control
One-touch Mute
Metal belt clip
CR99 Wireless Receiver
Rugged all-metal, rack mountable chassis
Multifunctional backlit LCD (RF, audio, transmitter battery levels)
Group scan for easy single or multi-system setup
IR sync wirelessly matches receiver and transmitter frequency
True RF Diversity design minimizes dropouts
Tone key prevents unwanted noise when transmitter is off/out of range
Removable 1/4-wave antennas
Balanced XLR and 1/4" outputs
System
Working Range300' (100m) line of sight
Audio Frequency Response50 Hz - 15 kHz
T.H.D. (Overall)<1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range>103 dB A-weighted
Signal to Noise>90 dB
Tone Key Frequency35kHz
CB99 Beltpack Transmitter
Input ConnectorMini-XLR (P3)
Input Impedance1M¦¸
Input Gain Range38 dB
RF Power10 mW EIRP
Power RequirementsTwo AA (LR6) alkaline batteries
Battery Life8 hours
Dimensions3.75" x 2.44" x 0.75" / 96mm x 62mm x 18.5mm
Weight0.2lb / 93g
CR99 Receiver
Audio Output Level - Unbalanced+14 dBu
Audio Output Level - Balanced+9 dBu
Audio Output Impedance - Unbalanced810 Ohms
Audio Output Impedance - Balanced240 Ohms
Sensitivity-100 dBm / 30 dB sinad
Image Rejection>50 dB
Operating Voltage15 VDC 200mA
Dimensions (LxWxH)7.87" x 5.9" x 1.6" / 200mm x 150mm x 42mm
Weight2.08lb / 946g
Recommended Use
The Concert 99 Presentation combines 80 channels of high-definition audio and extreme reliability in a rugged, all-metal, rack-mountable chassis with a stage-ready, backlit display. With easy one-touch setup, convenient monitoring, a 300' UHF operating range, and impressive transmitter battery life, this frequency-agile system offers unprecedented value to presenters, educators, and others seeking reliable wireless freedom.
