Concert 288m Handheld

-

Dual-Channel UHF Wireless System

left right

Take The Worry Out Of Wireless

The two-channel, frequency-agile Concert 288 Handheld allows up to 12 systems (24 performers) to operate simultaneously (depending on region). The Concert 288 Handheld gives both performers an impressive 300' of wireless range between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 Handheld features a true diversity design. In the event of a drop-out, the receiver's tone button triggers an auto mute function to eliminate background noise until the signal is restored.


Perform in Pairs

The Concert 288 Handheld includes two CH288 handheld transmitters with Q6 dynamic microphone capsules. Powered by two AA batteries for up to eight hours each, the transmitters are meticulously engineered to provide the ultimate in sound reproduction. With the Concert 288 handheld wireless system, advanced technology and total versatility combine to deliver high-quality wireless performance wherever singers, presenters, educators and others need it.


Dual-Channel Receiver

With a user-friendly front panel, the CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically synchronize the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.



Concert 288 Handheld System

  • Dual-channel, high-performance UHF wireless system

  • 1/4¡± audio cable, AC adapter and rackmount kit included

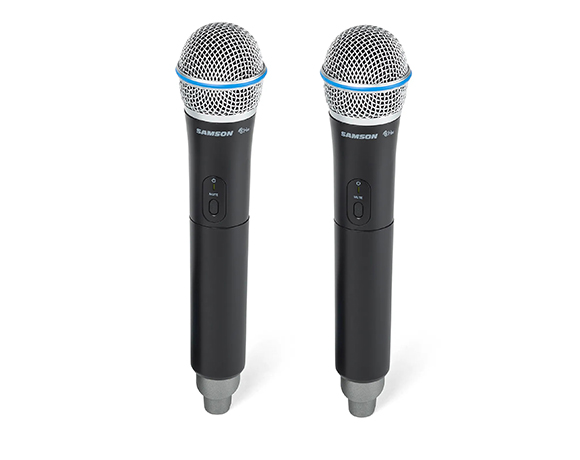

Two CH288 Handheld Transmitters

  • Two Q6 Dynamic Microphone capsules

  • Each offers up to eight hours of battery life using two AA batteries

  • 300' operating range


CR288 Wireless Receiver

  • Multiple frequency options for interference-free performance in any environment

  • Up to 12 systems can be operated simultaneously (region dependent)

  • Separate Volume controls for each wireless signal

  • Dual balanced XLR outputs for routing signals to two separate mixer channels

  • 1/4¡± unbalanced mix output to combine signals to one output channel



System

Working Range300' (100m) line of sight

Audio Frequency Response50 Hz - 15 kHz

T.H.D. (Overall)<1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range>100 dB A-weighted

Signal to Noise>85 dB

Tone Key Frequency32.768 kHz


CH288 Handheld Transmitter

Microphone ElementQ6 Dynamic

Input Gain Range28 dB

RF Power10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life8 hours

Dimensions (HxØ)10.23" x ø2.1" / 260mm x ø54mm

Weight0.48lb / 218g


CR288 Receiver

Audio Output Level - Mix Unbalanced+14 dBu

Audio Output Level - Balanced+14 dBu

Audio Output Impedance - Unbalanced1k Ohms

Audio Output Impedance - Balanced470 Ohms

Sensitivity-100 dBm / 20 dB sinad

Image Rejection>50 dB

Operating Voltage15 VDC 300mA

Dimensions (LxWxH)8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm

Weight0.99lb / 450g
