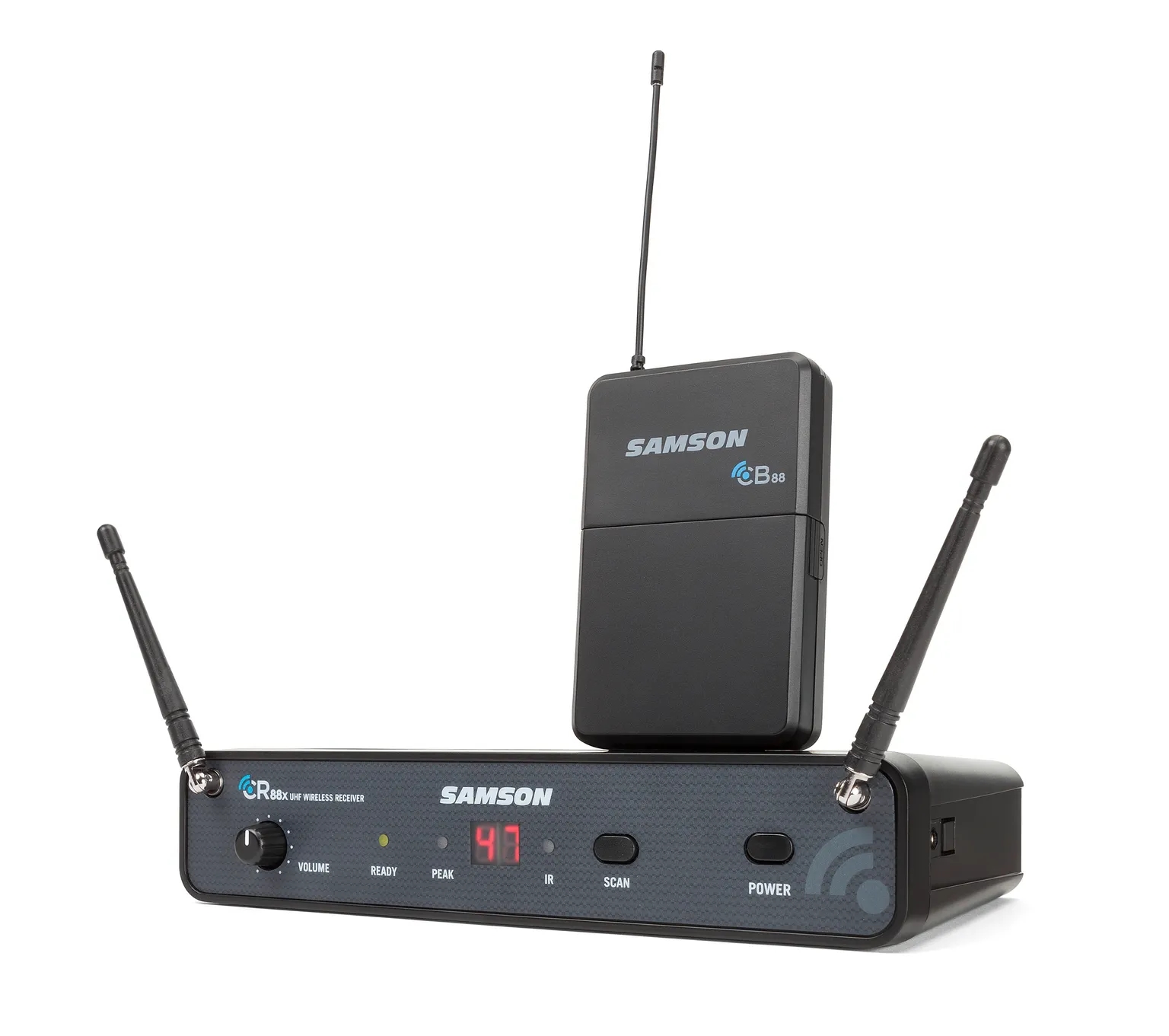

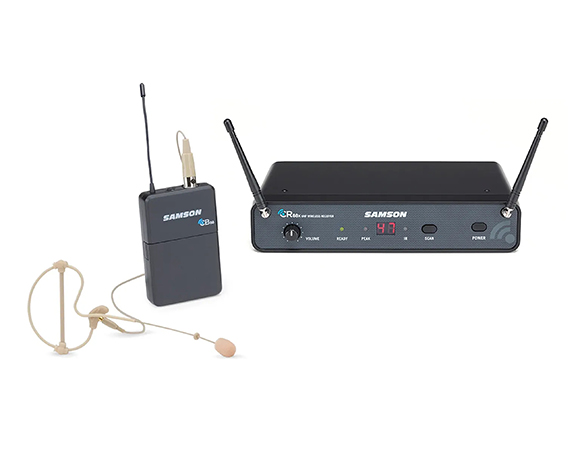

Concert 88x Earset

-

UHF Wireless System with SE10

left right

Pro Performance. Simple Setup.

Simplicity and performance are at the heart of Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your application.

57753ce23000c0a05afb8782fbb565b6_Samson-Fitness-12_190807-resized_tr=w-1536,f-jpeg.jpg

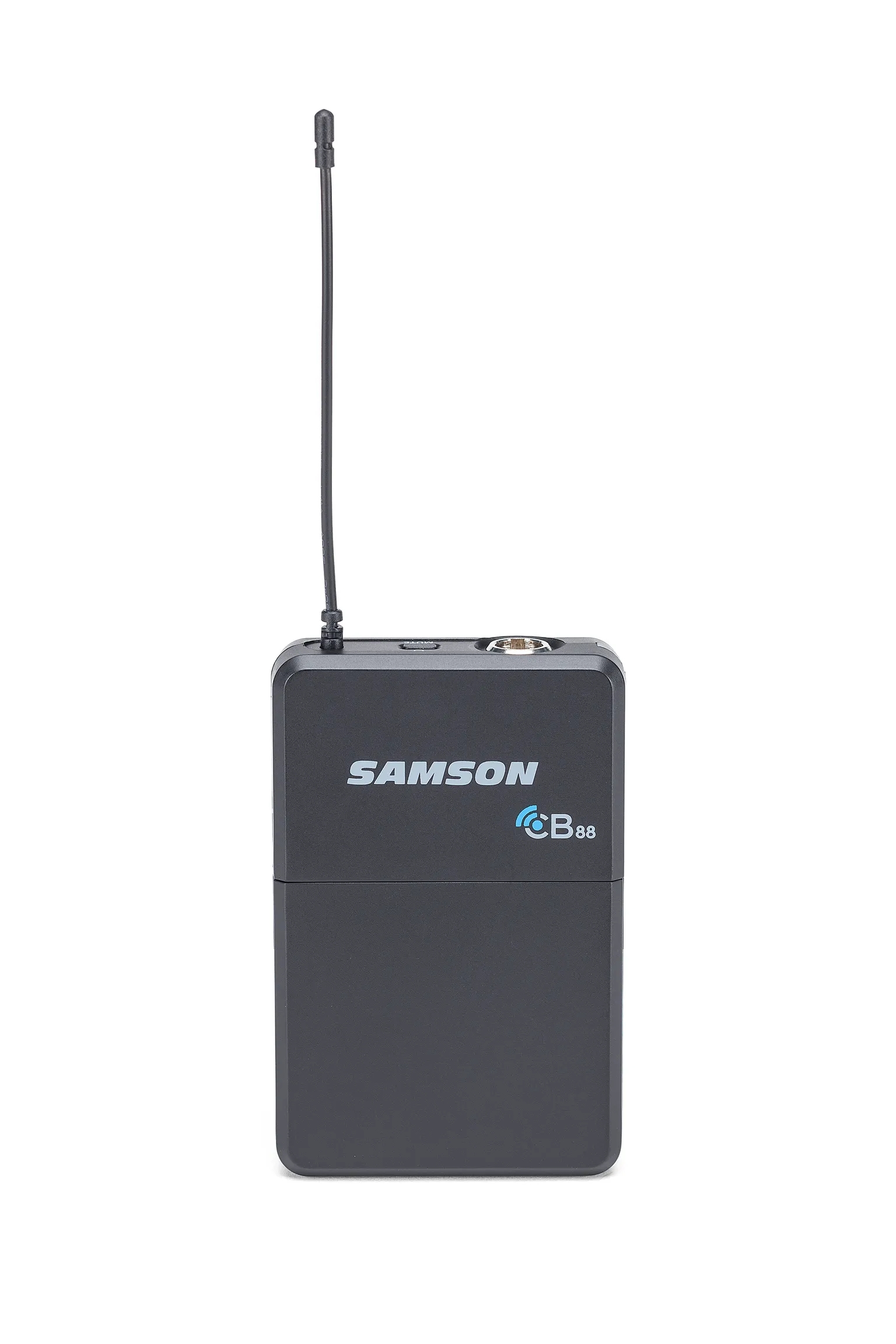

Sound Secure

The CB88 Beltpack Transmitter features a silent mute switch that eliminates popping noises when muting or unmuting the system, and an adjustable gain control for optimal performance. The CB88 fits securely on the performer's belt, waistband, or even in a pocket and provides up to eight hours of continuous operation from a pair of AA batteries.


Freedom to Roam the Stage

True-diversity design minimizes dropouts for loud, clear wireless reception up to 300 feet. Tone key and auto-mute circuitry ensures that only the audio signal from the CB88 beltpack transmitter reaches the receiver, and automatically mutes the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.

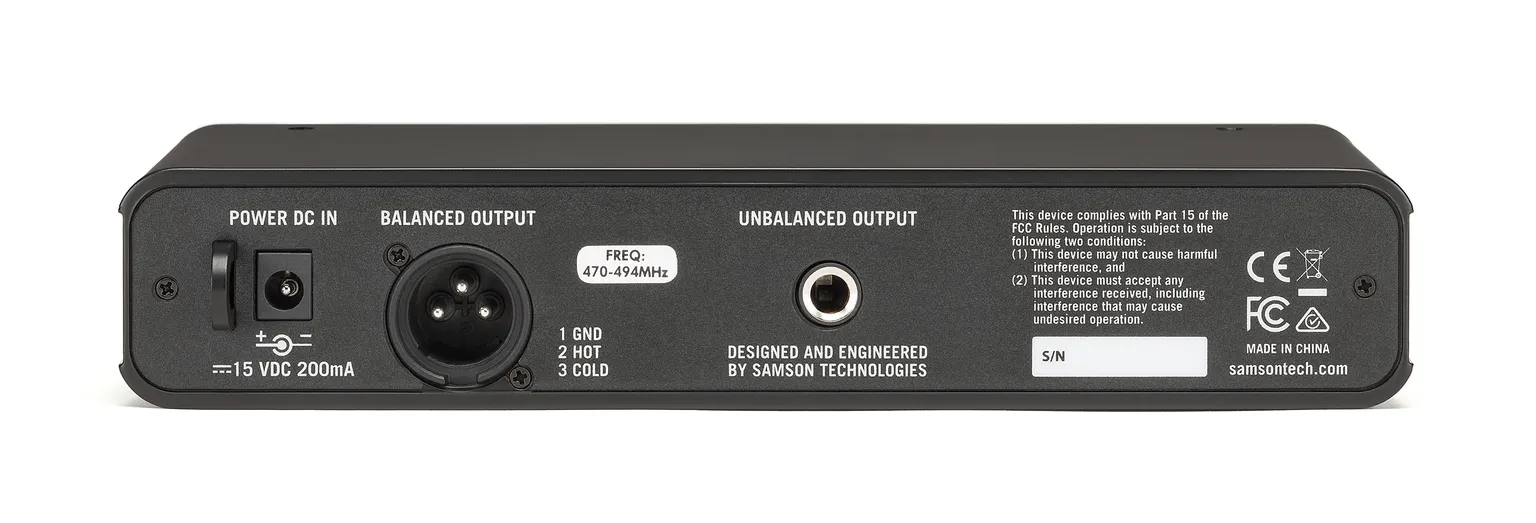

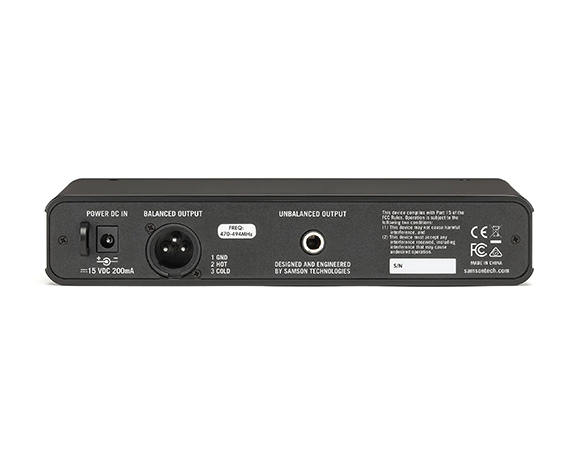

Making Connections

The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR88x receivers to be installed in a portable audio rack or fixed location.


Low Profile Microphone

The system includes the Samson SE10 low-profile miniature earset microphone with a 3mm capsule. This discreet microphone delivers superior audio in a lightweight and comfortable package. The omnidirectional pickup pattern results in a clear and articulate sound regardless of the capsule's position.


Concert 88x Presentation System

  • High-performance professional UHF wireless system

  • 100 operating channels across 25 MHz bandwidth

  • Up to 8 systems can be used simultaneously per frequency band (region dependent)

  • 300' operating range (line-of-site)

  • Rackmount kit included

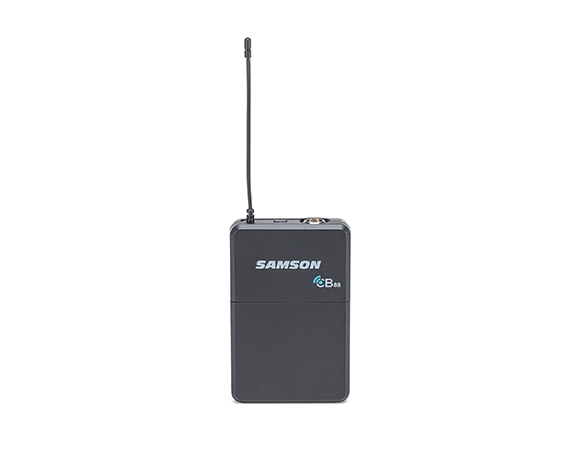

CB88 Beltpack Transmitter

  • Adjustable input gain

  • Silent mute button

  • Power/Mute status indicator

  • Metal belt clip

  • Up to eight hours of continuous use from two AA batteries


SE10 Earset Microphone

  • Miniature condenser microphone for nearly invisible use

  • 3mm mic capsule

  • Omnidirectional pickup pattern

  • Easily adjusts to fit left or right ear, retaining band holds mic in place

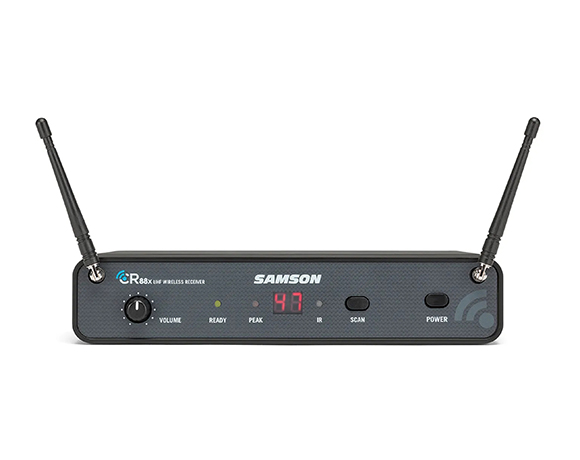

CR88x Wireless Receiver

  • One-touch automatic frequency scan finds the best operating channel

  • Two digit LED display

  • Infrared link locks the receiver and transmitter to the same channel

  • True diversity design minimizes dropouts

  • Tone key and auto mute prevents unwanted noise when transmitter is off or out of range

  • Balanced XLR and unbalanced 1/4" outputs
