AirLine 99m Fitness

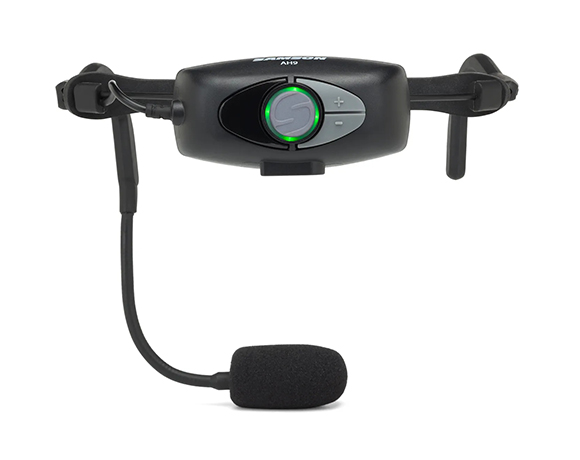

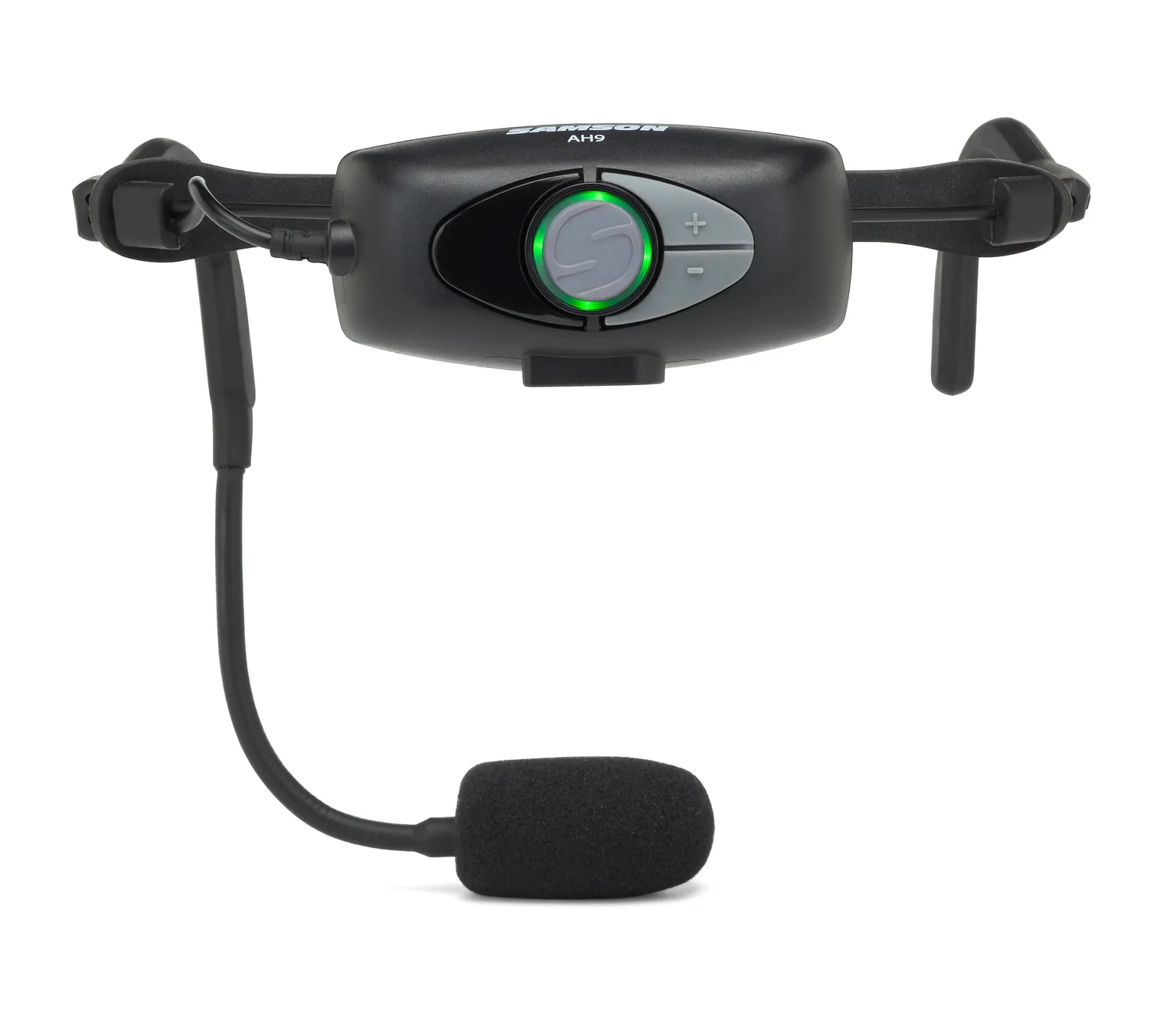

AH9 Micro Transmitter

The AH9 transmitter mounts directly to the included Qe headset, eliminating belt packs and cables, ideal for active performers. In addition to a 300' operating range, the AH9 features easy-access gain and mute controls, a low-battery LED indicator, and an 8-hour rechargeable lithium-ion battery.

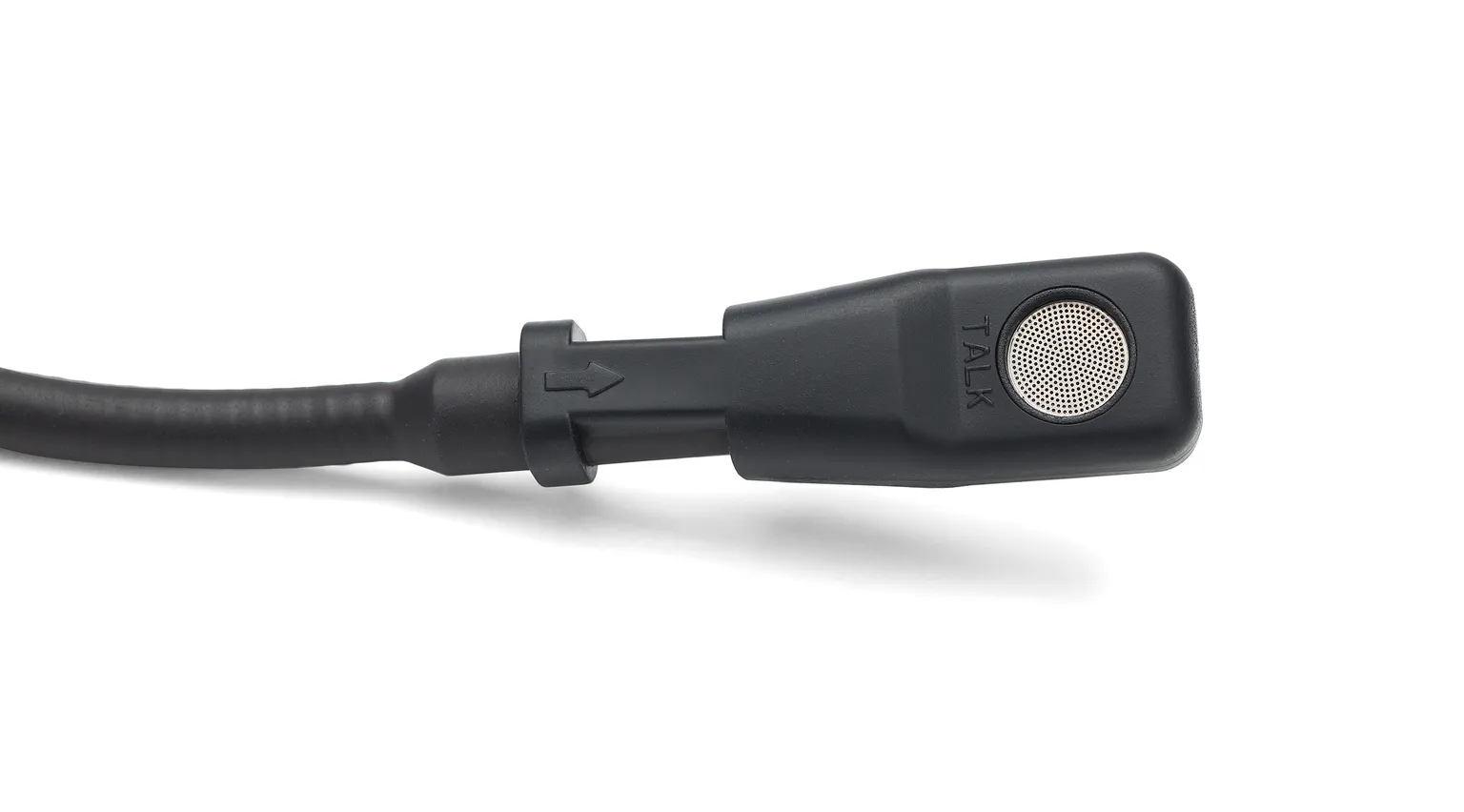

Qe Fitness Headset Microphone

The QEx is a lightweight headset that fits comfortably around your ears and head with an adjustable strap for a secure fit when needed. An adjustable stainless steel metal gooseneck with a waterproof condenser microphone prevents corrosion from prolonged exposure to moisture, which is common in fitness environments.

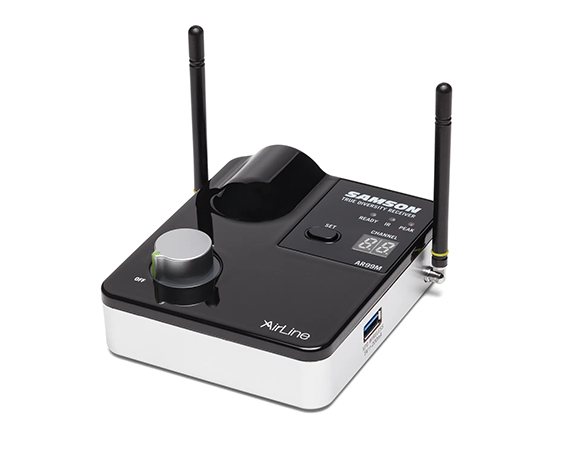

AR99m Tabletop Receiver

The micro-sized AR99m True RF Diversity receiver offers frequency-agile UHF operation with 100 available channels to ensure reliable wireless performance. The receiver offers easy setup with a one-touch scan that analyzes and selects the clearest operating channel, an infrared set to pair the transmitter with the receiver, and XLR, 1/4" and 1/8" output connectors.

Even More Wireless

A USB port on the AR99m receiver can be used to charge the AH9 transmitter or integrate a Samson XPD Series wireless system (sold separately) to make it a dual receiver.

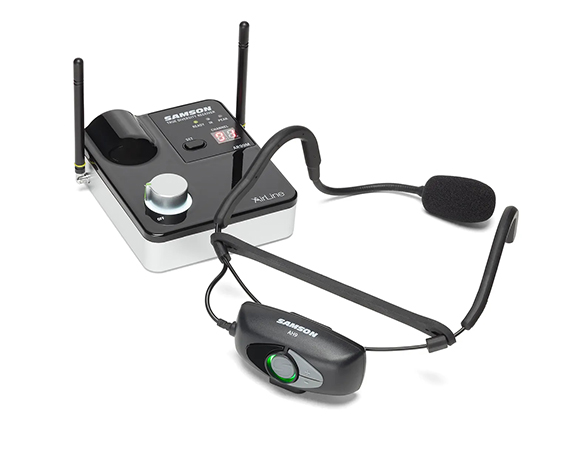

AirLine 99m Fitness Headset Wireless System

• Frequency-agile UHF wireless system

• 100 operating channels across 24MHz bandwidth

• Up to 8 simultaneous systems per frequency band (region dependent)

AH9 Wireless Micro Transmitter

• Micro transmitter mounted directly to a double ear headset (no beltpack or cable required)

• Water/sweat-resistant Qe headset microphone with condenser capsule

• Up to eight hours of battery life using built-in rechargeable lithium-ion battery

• Sealed gold contact charging connector

• Low battery LED indicator

• 300' operating range (line-of-sight)

• Variable Gain control

• One-touch Mute

• Windscreen included

•


AR99m Wireless Micro Receiver

• True RF Diversity micro receiver design minimizes dropouts

• Set button scans/selects optimal channel options

• IR sync wirelessly matches transmitter to receiver frequency

• Tone key prevents unwanted noise when transmitter is off or out of range

• Channel and Ready/IR/Peak LED displays

• Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs

• USB port for adding a Samson XPD Series wireless system or charging AH9 transmitter

• Rotary volume knob with integral power switch

• 1/4-wave antennas

System

Working Range300' (100m) line of sight

Audio Frequency Response50 Hz - 15 kHz

T.H.D. (Overall)<1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range>100 dB A-weighted

Signal to Noise>95 dB

Tone Key Frequency35 kHz

AH9 Transmitter

Input Gain Range20dB

RF Power10mW EIRP

Power Requirements3.6V 500mAh

Lithium Ion rechargeable battery

Battery Life8 hours

Dimensions5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm

Weight0.13lb / 60g

AR99m Receiver

Audio Output Level 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced)+14dBu

Audio Output Level XLR jack (balanced)+9dBu

Audio Output Impedance 1/8" (3.5mm) & 1/4" (6.3.mm) jack (unbalanced)810 Ohms,

Audio Output Impedance XLR output jack (balanced)240 Ohms

Sensitivity100dBm/30dB SINAD

Image Rejection>50dB

Operating Voltage15VCC 600mA

Dimensions (LxWxH)4.3" x 3.74" x 1.5" / 110mm x 95mm x 39mm

Weight0.42lb / 192g
