Go Mic Mobile® Handheld

-

Digital Wireless System for Mobile Video with Q8

left right

No Wires... or Video Sync Issues!

A two-channel digital wireless system operating in the 2.4 GHz band, Go Mic Mobile® provides reliable, crystal-clear operation up to 30 meters (100 feet) to capture the sound of your stories without wires. The system automatically selects the clearest operating channel for your location, while uncompressed, low-latency audio transmission eliminates audio sync problems.

ecab8baca550b276fcb29d047bcb929e_GMM-HH-Interview-Bayshore-Bean-8-SW1525_tr=w-1536,f-jpeg.jpg

Where Will You Go?

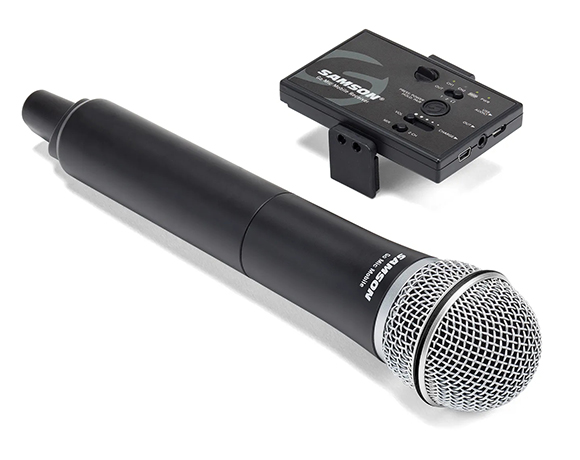

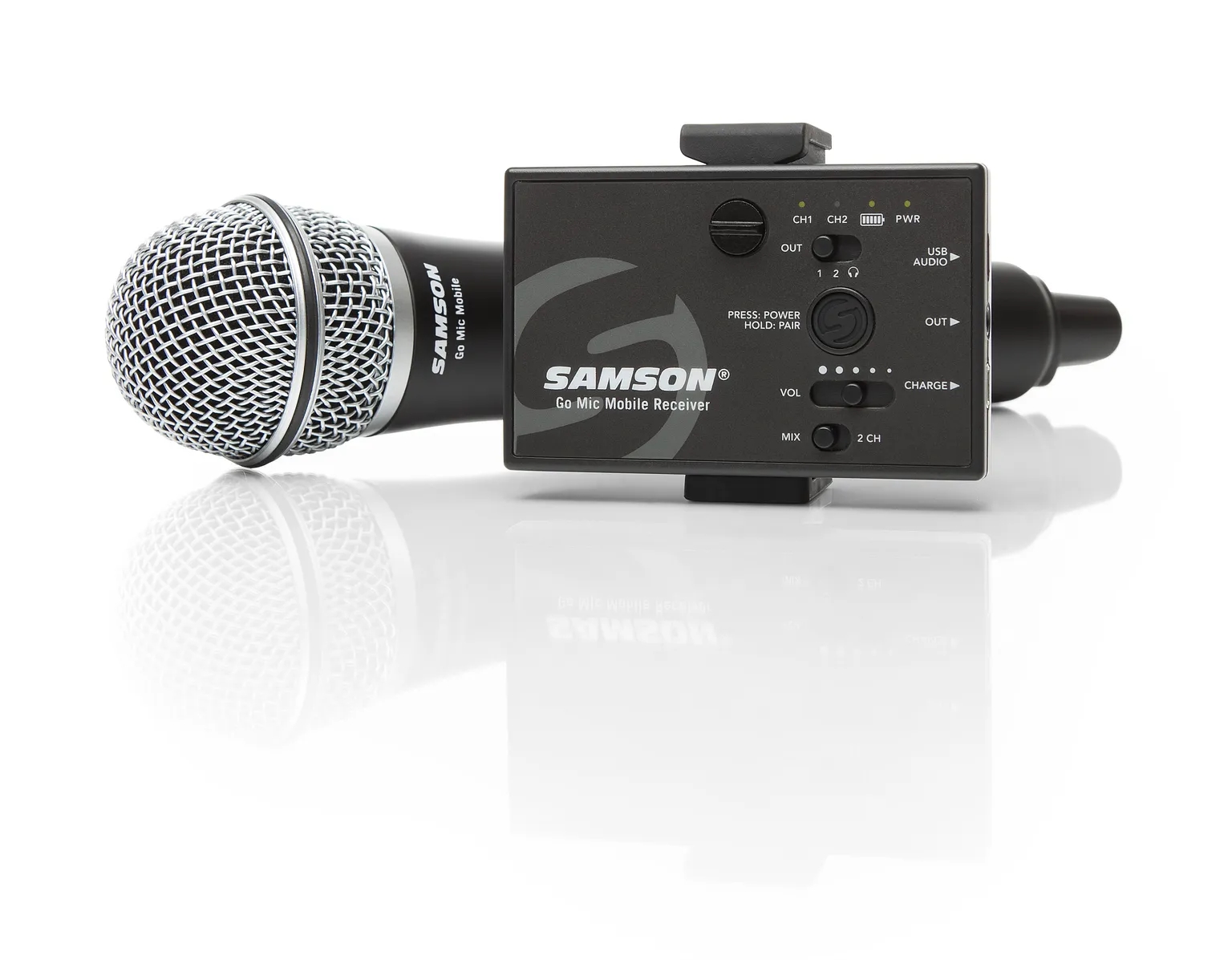

In addition to the Go Mic Mobile® receiver, the uniquely configured Go Mic Mobile® handheld wireless system features Samson's HXD2 handheld transmitter with Q8 professional dynamic microphone capsule for up to 100' of uncompressed digital wireless operation. The HXD2 also features AGC (Auto Gain Control) and internal limiting to ensure you always have the clearest audio signal possible.


Mount, Plug and Play

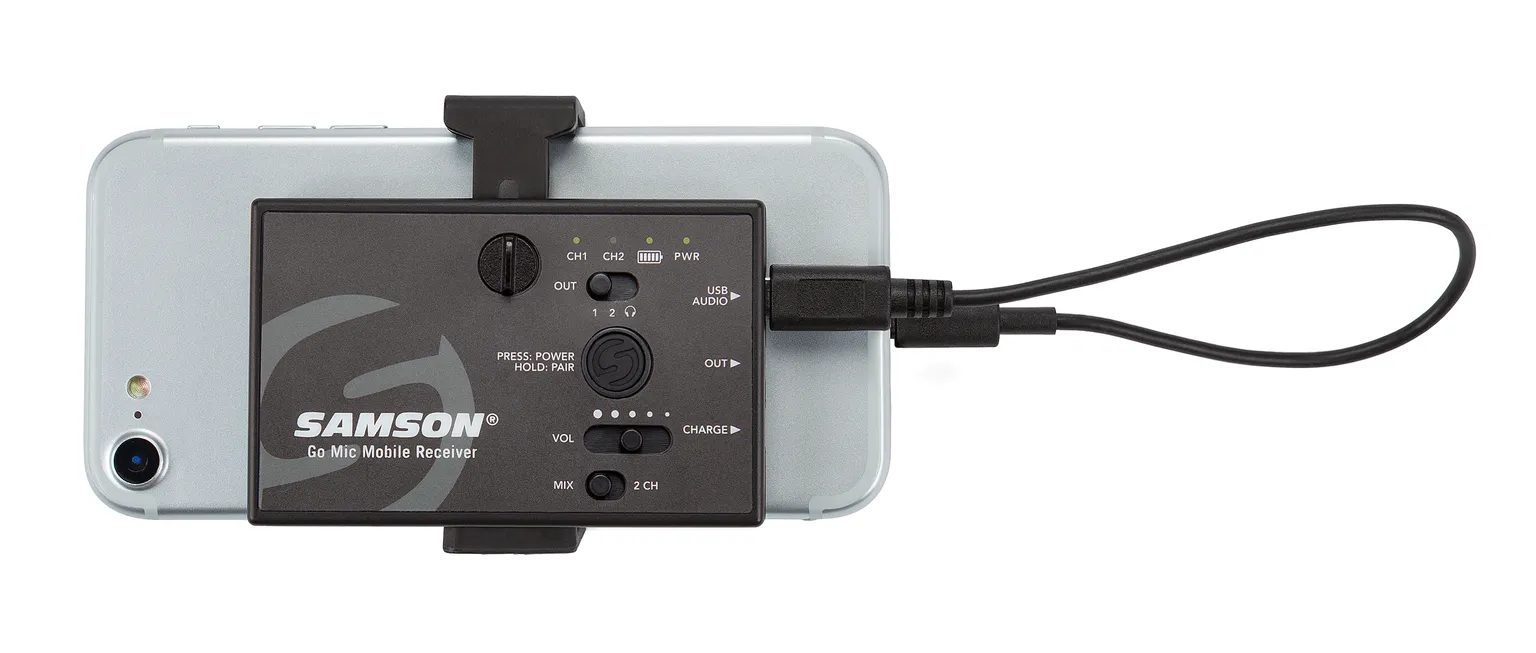

The Go Mic Mobile® receiver attaches directly to smartphones, tablets, digital cameras, and tripods using the included mounting accessories (brackets, Velcro straps, 1/4"-20 adapter, shoe mount adapter). From there, simply connect Go Mic Mobile® to your iOS device via the included Lightning cable, Android* devices via USB Micro B or USB-C cables (both included), digital camera, camcorder, or computer, and start recording. And you can keep recording because the receiver offers up to 13 hours of battery life from its built-in rechargeable lithium-ion battery.


Features

  • 2.4GHz digital wireless system

  • Low latency audio transmission with no video sync issues

  • Dual-channel receiver mounts directly to smartphones, tablets, digital cameras and tripods via included bracket arms, hook-and-loop fasteners, 1/4"¨C20 adapter, shoe mount adapter

  • Plugs directly into iPhone and other iOS devices via included Lightning cable

  • Plugs directly into Android devices via USB Micro B or USB-C cables (both included)

  • Receiver offers up to 13 hours of battery life via rechargeable lithium-ion battery

  • Switchable 1/8" headphone/line and USB audio outputs with volume control

  • HXD2 Handheld Transmitter with Q8 Professional Dynamic Microphone capsule

  • Transmitter offers up to 20 hours of battery life using two AA batteries

  • Up to 100' operating range (line-of-sight)

  • 1/8" (3.5mm) audio cable, USB charge cable and power adapter also included


Go Mic Mobile® Wireless System Specifications

Working Range100' (30m) line of sight

Working Frequency2.406 ~ 2.478 GHz

Frequency Response10 Hz ¨C 22 KHz

Signal To Noise90 dB (A) mic at minimum gain, 78 dB (A) mic at maximum gain

AccessoriesMicro USB to Lightning cable, Micro USB to Micro USB cable, Micro USB to USB-C cable, Mini-B USB to USB-A cable, 3.5mm audio cable, shoe mount adapter


Go Mic Mobile® Receiver Specifications

Max. Analog Audio Output Level6 dBu, =4.4 Vpp, =70 mW per side into 32¦¸

USB Audio Sample Rate48 kHz

USB Audio SupportWindows, Mac OS, iOS, Android, Linux

Battery Life7 ¨C 13 hours depending on use

PowerInternal rechargeable lithium-ion battery

Operating Voltage5V DC 500mA


HXD2 Handheld Transmitter Specifications

Microphone TypeUnidirectional

RF Power<10 mW EIRP

Power RequirementsTwo AA (LR6) alkaline batteries

Battery Life20 hours
